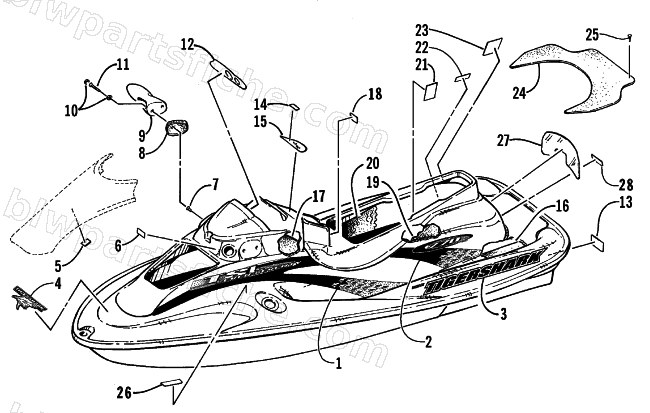

1999 Arctic Cat TS 900 L — DECAL AND FOOTPAD ASSEMBLY
1999 TS 900 L
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0614-544 | DECAL,DECK-FWD STRBRD | 1 | $188.95 | |
| 1 | 0614-545 | DECAL,DECK-FWD PORT | 1 | $188.95 | |
| 2 | 0614-546 | DECAL,DECK-AFT STRBRD | 1 | $188.95 | |
| 2 | 0614-547 | DECAL,DECK-AFT PORT | 1 | $188.95 | |
| 3 | 0614-548 | DECAL,STRBRD-"TIGERSHARK" | 1 | $67.59 | |
| 3 | 0614-549 | DECAL,PORT-"TIGERSHARK" | 1 | $76.79 | |
| 4 | 0614-560 | DECAL,CREST | 1 | $34.79 | |
| 5 | 0614-431 | DECAL,LOADING-STORAGE TRAY | 1 | $4.99 | |
| 6 | 0614-300 | DECAL, OIL - USAGE | 1 | $8.59 | |
| 7 | 0623-737 | INSERT,BRASS-AKB2-420-390 (.25 X 20) | 1 | $5.59 | |
| 8 | 1673-120 | GASKET,MOUNTING-MIRROR RH | 1 | $10.97 | |
| 8 | 1673-127 | GASKET,MOUNTING-MIRROR LH | 1 | $10.97 | |
| 9 | 1673-648 | MIRROR,STRBRD-BLACK | 1 | $145.59 | |
| 9 | 1673-649 | MIRROR,PORT-BLACK | 1 | $143.59 | |
| 10 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 11 | 0624-187 | SCREW,MACH-PHPNH-1/4-20 X 1 1/2 (SS) | 1 | $1.39 | |
| 12 | 0614-517 | DECAL,INSTR. PANEL | 1 | $20.95 | |
| 13 | 0614-154 | DECAL,CAUTION-UPRIGHTING | 1 | $12.29 | |
| 14 | 0614-356 | DECAL,CAUTION-LEAN CONDITION | 1 | $16.95 | |
| 15 | 0614-559 | DECAL,CONSOLE (NO RESERVE) | 1 | $102.59 | |
| 16 | 0617-262 | FOAM,FOOTWELL | 1 | $25.79 | |
| 17 | 0617-284 | FOAM,DECK-STRBD | 1 | $53.59 | |
| 17 | 0617-285 | FOAM,DECK-PORT | 1 | $50.59 | |
| 18 | 1611-866 | DECAL,WARNING-GAS VAPORS | 1 | $4.69 | |
| 22 | 0614-059 | DECAL, COMMON SENSE | 1 | $11.29 | |
| 23 | 0614-067 | DECAL,USCG EXEMPTION | 1 | $9.95 | |
| 25 | 0623-725 | CLIP,RETAINING-BLACK | 1 | $0.75 | |
| 26 | 0614-299 | DECAL,WARNING-FUEL | 1 | $7.95 | |
| 27 | 0614-350 | DECAL,REGULATION-WHITE | 1 | $49.29 |
