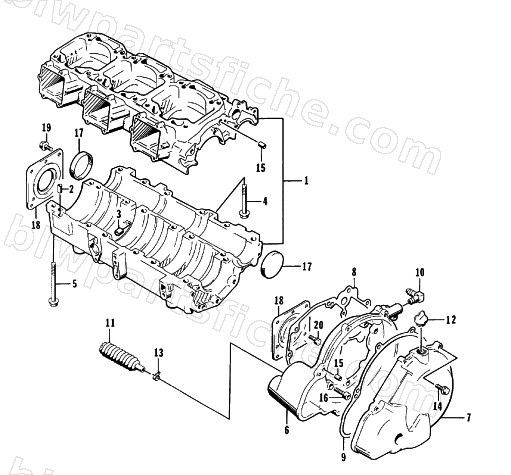

1999 Arctic Cat TS 900 L — CRANKCASE ASSEMBLY
1999 TS 900 L
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3008-256 | CRANKCASE (PJ 1000/1100) | 1 | $4,418.95 | |
| 2 | 3003-646 | PIN,CRANKCASE,ALINGMENT,11MM | 1 | $4.26 | |
| 3 | 3003-289 | BUSHING,OIL PUMP,M7 | 1 | $5.09 | |
| 4 | 3008-212 | BOLT, 10X70 | 1 | $13.73 | |
| 5 | 3008-301 | BOLT,M10X90 | 1 | $13.29 | |
| 6 | 3008-257 | CASE ASSY,MAGNETO | 1 | $597.95 | |
| 7 | 3008-258 | COVER,MAGNETO CASE | 1 | $407.95 | |
| 8 | 3008-570 | GASKET,MAGNETO CASE | 1 | $59.95 | |
| 9 | 3008-260 | GASKET,COVER | 1 | $46.79 | |
| 10 | 3008-092 | UNION, COOLING HOSE | 1 | $82.95 | |
| 12 | 3008-023 | PLUG, OIL,20MM | 1 | $11.95 | |
| 14 | 3008-213 | SCREW,CAP-HWH M6X25 | 1 | $4.19 | |
| 15 | 3002-012 | PIN, DOWEL 9 X 12 | 1 | $2.88 | |
| 16 | 3008-303 | BOLT,8X30 | 1 | $4.69 | |
| 18 | 3008-304 | PLATE,OIL SEAL | 1 | $33.95 | |
| 19 | 3008-216 | BOLT, 6X16 | 1 | $4.49 | |
| 20 | 3008-305 | BOLT,6X16 | 1 | $4.69 |
