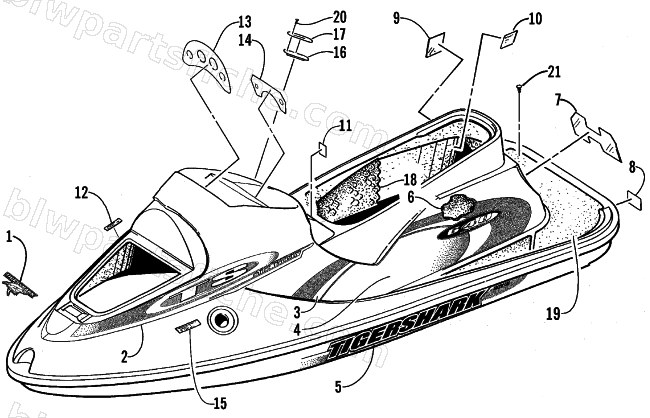

1999 Arctic Cat TS 770 — DECAL AND FOOTPAD ASSEMBLY
1999 TS 770
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0614-510 | DECAL,CREST "TS" | 1 | $15.29 | |
| 2 | 0614-500 | DECAL,DECK-FWD STRBRD | 1 | $157.95 | |
| 2 | 0614-501 | DECAL,DECK-FWD PORT | 1 | $201.59 | |
| 3 | 0614-552 | DECAL,DECK-FWD STRBRD LOWER | 1 | $163.95 | |
| 3 | 0614-553 | DECAL,DECK-FWD PORT LOWER | 1 | $163.95 | |
| 4 | 0614-502 | DECAL,DECK-AFT STRBRD | 1 | $126.79 | |
| 4 | 0614-503 | DECAL,DECK-AFT PORT | 1 | $126.79 | |
| 5 | 0614-504 | DECAL,HULL-STRBRD "TSK" | 1 | $117.29 | |
| 5 | 0614-505 | DECAL,HULL-PORT "TSK" | 1 | $101.59 | |
| 6 | 0617-259 | FOAM,SOUND-PORT | 1 | $36.59 | |
| 7 | 0614-350 | DECAL,REGULATION-WHITE | 1 | $49.29 | |
| 8 | 0614-154 | DECAL,CAUTION-UPRIGHTING | 1 | $12.29 | |
| 9 | 0614-066 | DECAL,USCG EXEMPTION | 1 | $4.59 | |
| 10 | 0614-443 | DECAL,WINTER STORAGE-770 | 1 | $12.95 | |
| 11 | 1611-866 | DECAL,WARNING-GAS VAPORS | 1 | $4.69 | |
| 12 | 0614-300 | DECAL, OIL - USAGE | 1 | $8.59 | |
| 13 | 0614-513 | DECAL,INSTR. PANEL "TS 770" | 1 | $85.59 | |
| 14 | 0614-511 | DECAL,CONSOLE "TS" | 1 | $106.79 | |
| 15 | 0614-405 | DECAL,FUEL-91 MIN OCTANE | 1 | $10.59 | |
| 16 | 0614-556 | DECAL,OIL LEVEL | 1 | $27.79 | |
| 17 | 0670-926 | LENS,GAUGE-OIL LEVEL (W/HOLES) | 1 | $37.95 | |
| 20 | 0623-760 | CLIP,RETAINING-NATURAL | 1 | $0.36 |
