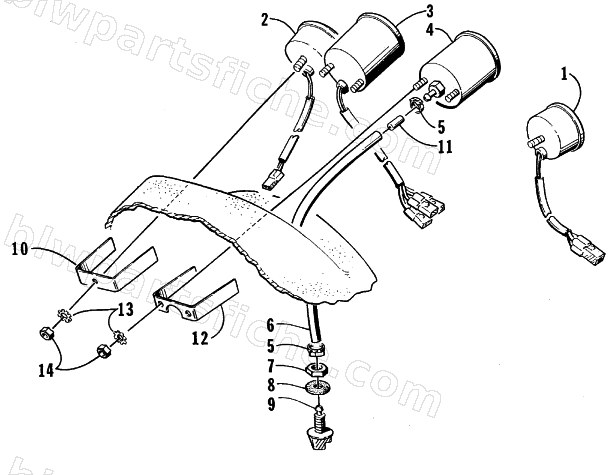

INSTRUMENT ASSEMBLY
1999 TS 770 R
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0620-232 | GAUGE,TRIM-2" | 1 | $381.95 | |
| 2 | 0620-228 | GAUGE,FUEL/OIL/OH-2" | 1 | $432.95 | |
| 3 | 0620-229 | TACHOMETER,3"-4 POLE | 1 | $463.95 | |
| 4 | 0620-235 | SPEEDOMETER,3" | 1 | $339.95 | |
| 6 | 0673-809 | TUBING,VINYL-20FT | 1 | $39.95 | |
| 10 | 0620-173 | BACKCLAMP,FUEL GAUGE | 1 | $4.89 | |
| 12 | 0620-199 | BRACKET,GAUGE-3" | 1 | $5.92 | |
| 12 | 0620-201 | BACKCLAMP,TACHOMETER | 1 | $17.87 | |
| 13 | 0623-702 | WASHER,STAR-#8 BRASS | 1 | $0.92 | |
| 14 | 0623-701 | NUT,HEX-8-32 | 1 | $0.18 |
