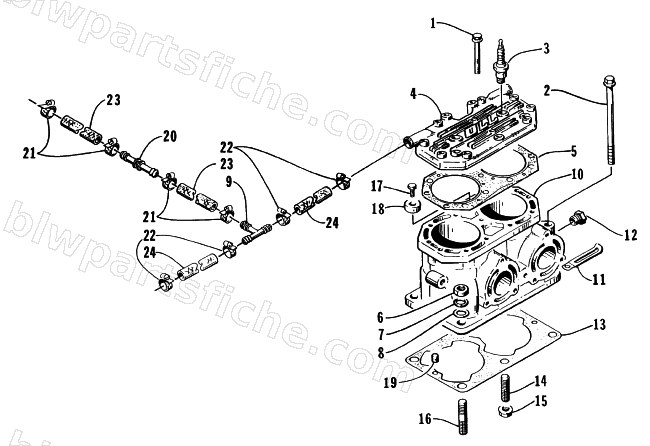

1999 Arctic Cat TS 770 R — CYLINDER ASSEMBLY
1999 TS 770 R
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3008-381 | BOLT,8MM | 1 | $6.29 | |
| 2 | 3008-459 | BOLT, CYLINDER,10MM | 1 | $26.95 | |
| 3 | 0217-709 | SPARK PLUG, BR9EYA | 1 | $5.09 | |
| 4 | 3008-531 | HEAD, CYLINDER (PJ770) | 1 | $669.29 | |
| 5 | 3008-635 | GASKET, HEAD | 1 | $79.95 | |
| 6 | 3008-209 | NUT,10MM | 1 | $3.16 | |
| 7 | 3008-207 | WASHER, LOCK,10MM | 1 | $3.59 | |
| 8 | 3007-410 | WASHER | 1 | $2.75 | |
| 9 | 1673-162 | FITTING,TEE-3/8X5/8X5/8 T3858 | 1 | $4.19 | |
| 10 | 3008-425 | CYLINDER ASSY (PJ770) | 1 | $2,668.95 | |
| 11 | 3008-358 | CLAMP,M10 | 1 | $3.49 | |
| 12 | 1673-190 | PLUG,1/4-19 BSPT BRASS | 1 | $3.69 | |
| 13 | 3008-411 | GASKET, CYL BASE - 770 CC | 1 | $49.95 | |
| 14 | 3008-394 | BOLT, CYLINDER STUD-M10X25 | 1 | $5.29 | |
| 15 | 3008-208 | NUT,10MM | 1 | $4.19 | |
| 17 | 3008-013 | BOLT, 6X14 | 1 | $2.79 | |
| 18 | 3008-047 | ZINC, CYLINDER | 1 | $25.79 | |
| 19 | 3008-146 | PIN, KNOCK(ALIGNMENT) | 1 | $2.99 | |
| 20 | 1673-170 | JET,RESTRICTOR-WATER (.075) | 1 | $26.95 | |
| 21 | 0624-324 | CLAMP,HOSE-#4-SS | 1 | $1.59 | |
| 22 | 0624-016 | CLAMP,HOSE-6708-5 (7/16-1) #8 | 1 | $2.99 | |
| 23 | 0610-183 | HOSE,3/8 WATERLINE-25' | 1 | $66.29 | |
| 24 | 0710-191 | HOSE,WATER-HI TEMP.75X25' | 1 | $101.59 |
