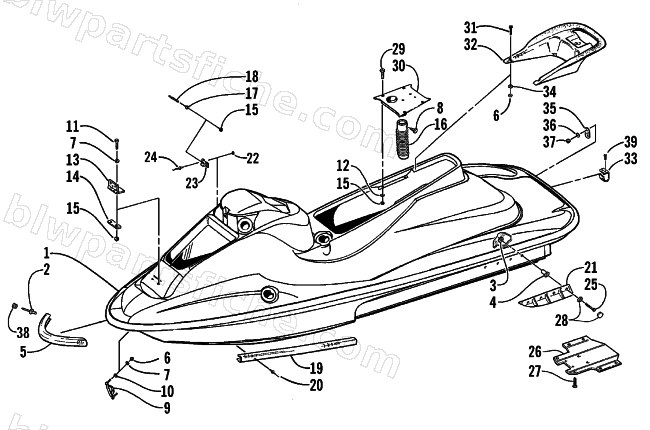

1999 Arctic Cat TS 1100 R — HULL AND RELATED PARTS ASSEMBLY
1999 TS 1100 R
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0773-989 | HULL/DECK ASSY-SP 99 TS1100 R | 1 | $4,390.29 | |
| 2 | 0623-636 | RIVET,AD610ABSLF-BLK | 1 | $1.29 | |
| 3 | 0624-293 | WASHER,BACKUP-AVK/.395X.65 | 1 | $0.36 | |
| 4 | 0623-737 | INSERT,BRASS-AKB2-420-390 (.25 X 20) | 1 | $5.59 | |
| 5 | 0773-979 | NOSECONE,BLACK-MACH | 1 | $169.95 | |
| 6 | 0624-089 | NUT,LOCK-HH 1/4 20 (SS) | 1 | $1.39 | |
| 7 | 0624-182 | WASHER,FLAT-6.4MM ID X 18MM OD X 1.6T (S | 1 | $0.52 | |
| 9 | 0773-516 | BOWEYE-WELDMENT | 1 | $66.95 | |
| 10 | 0624-299 | WASHER,SEALING-1/4 SS | 1 | $0.92 | |
| 11 | 0624-112 | SCREW,CAP HH6MM 1.0TX25MM | 1 | $0.65 | |
| 12 | 0624-022 | WASHER,FLAT-6MM SS | 1 | $0.22 | |
| 13 | 1673-032 | HINGE | 1 | $180.95 | |
| 14 | 1673-031 | PLATE,BACKING-HINGE | 1 | $4.89 | |
| 15 | 0624-250 | NUT,LOCK-NSL M6-1.0 SS | 1 | $0.68 | |
| 16 | 0610-400 | HOSE,AIR-2 1/2X27 | 1 | $29.29 | |
| 17 | 0624-059 | NUT,JAM-6MM 1.0T (SS) | 1 | $1.19 | |
| 19 | 0673-916 | TRIM,RH-BLK | 1 | $102.29 | |
| 19 | 0673-999 | TRIM,LH-BLK | 1 | $115.79 | |
| 20 | 0624-068 | RIVET,SS/SS610D | 1 | $1.39 | |
| 21 | 1673-582 | SPONSON,STRBRD-BLACK | 1 | $81.95 | |
| 21 | 1673-583 | SPONSON,PORT-BLACK | 1 | $81.95 | |
| 22 | 0624-004 | WASHER,FLAT-M5 (SS) | 1 | $0.44 | |
| 23 | 1673-483 | BRACKET,LATCH STUD | 1 | $22.01 | |
| 24 | 0624-072 | RIVET,SS/SS68D | 1 | $1.29 | |
| 25 | 0624-271 | SCREW,MACH-PHPNH-1/4-20 X 1 (SS) | 1 | $0.55 | |
| 26 | 1673-594 | PLATE,RIDE | 1 | $231.95 | |
| 27 | 0624-186 | SCREW,MACH-TSFH 6MM-1.0 X 35MM (SS) | 1 | $2.19 | |
| 28 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 29 | 0624-184 | SCREW,MACH-TSFH 6MM-1.0 X 25MM (SS) | 1 | $2.19 | |
| 30 | 1673-480 | BRIDGE,SEAT MOUNTING | 1 | $73.95 | |
| 31 | 0624-187 | SCREW,MACH-PHPNH-1/4-20 X 1 1/2 (SS) | 1 | $1.39 | |
| 32 | 1673-417 | HANDLE,GRAB-BLACK | 1 | $149.95 | |
| 33 | 0673-975 | COVER,RUB RAIL | 1 | $46.95 | |
| 34 | 0624-228 | WASHER,FLAT-.281X.625X.037 (SS) | 1 | $0.68 | |
| 36 | 0624-159 | WASHER,FLAT-FENDER 10MM 1 3/8 OD (SS) | 1 | $2.99 | |
| 37 | 0624-258 | NUT,LOCK 3/8-16 SS | 1 | $1.39 | |
| 38 | 1673-687 | PLUG,.75-BLACK (HEYCO SP-750 P/N1693) | 1 | $1.79 | |
| 39 | 0623-725 | CLIP,RETAINING-BLACK | 1 | $0.75 |
