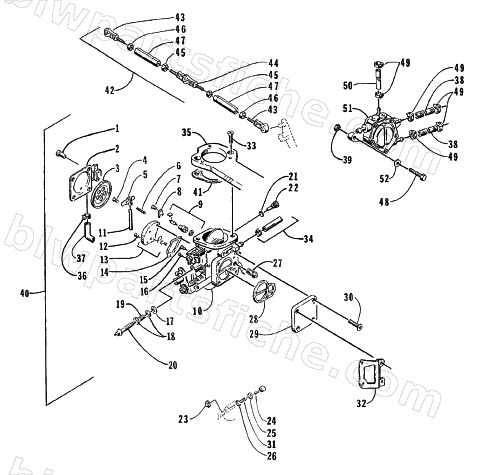

CARBURETOR
1999 TS 1100 R
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0670-885 | CARBURATOR-BN42I-40-C4 | 1 | $1,694.59 | |
| 1 | 6505-915 | SCREW | 1 | $4.09 | |
| 1 | 6505-943 | SCREW | 1 | $2.79 | |
| 2 | 6505-662 | COVER | 1 | $46.95 | |
| 2 | 6506-021 | DIAPHRAGM COVER ASSEMBLY | 1 | $473.95 | |
| 3 | 6505-663 | DIAPHRAM ASS'Y | 1 | $59.95 | |
| 4 | 6505-692 | SCREW | 1 | $1.95 | |
| 5 | 6505-664 | ARM | 1 | $12.59 | |
| 6 | 6505-871 | SPRING ARM,80 GR. | 1 | $10.95 | |
| 7 | 6505-695 | SCREW | 1 | $4.29 | |
| 8 | 6505-682 | PLATE | 1 | $4.79 | |
| 9 | 6505-717 | NEEDLE VALVE, 2.3 | 1 | $59.95 | |
| 11 | 6505-681 | PIN | 1 | $1.59 | |
| 12 | 6505-679 | SCREW | 1 | $0.87 | |
| 13 | 6505-680 | BLOCK, METERING | 1 | $64.95 | |
| 14 | 6505-677 | GASKET | 1 | $32.95 | |
| 15 | 6505-737 | JET, HIGH SPEED, 120 | 1 | $7.59 | |
| 15 | 6505-745 | JET, HIGH SPEED, 140 | 1 | $10.97 | |
| 15 | 6505-743 | JET, HIGH SPEED, 135 | 1 | $19.95 | |
| 16 | 6505-774 | JET, LOW SPEED, 70 | 1 | $10.97 | |
| 17 | 6505-668 | O-RING | 1 | $1.79 | |
| 18 | 6505-661 | WASHER | 1 | $1.49 | |
| 19 | 6505-660 | SPRING | 1 | $2.49 | |
| 20 | 6505-852 | ADJUSTER ASS'Y | 1 | $34.95 | |
| 21 | 6505-042 | O-RING | 1 | $4.95 | |
| 22 | 6505-953 | JET,HIGH SPEED FIXED-85 | 1 | $8.95 | |
| 22 | 6505-728 | JET, HIGH SPEED, 95 | 1 | $9.59 | |
| 23 | 6505-911 | NUT | 1 | $12.35 | |
| 24 | 6505-912 | ADJUST SCREW | 1 | $46.95 | |
| 25 | 6505-703 | WASHER | 1 | $1.49 | |
| 26 | 6505-872 | O-RING | 1 | $4.59 | |
| 27 | 6505-676 | FILTER | 1 | $14.95 | |
| 28 | 6505-665 | S-GASKET | 1 | $69.95 | |
| 29 | 6505-848 | COVER,PUMP | 1 | $61.95 | |
| 30 | 6505-853 | SCREW W/WASHER | 1 | $6.95 | |
| 31 | 6505-678 | SPRING | 1 | $2.49 | |
| 32 | 6505-913 | BRACKET | 1 | $72.95 | |
| 33 | 6505-914 | SCREW | 1 | $4.29 | |
| 34 | 0710-425 | HOSE,FUEL-25' (ISO8469) | 1 | $95.59 | |
| 35 | 6505-917 | FLANGE | 1 | $252.95 | |
| 36 | 6505-941 | CLIP | 1 | $6.95 | |
| 37 | 6505-942 | HOSE | 1 | $7.59 | |
| 39 | 0624-089 | NUT,LOCK-HH 1/4 20 (SS) | 1 | $1.39 | |
| 40 | 6506-107 | CARBURETOR ASSEMBLY-MAG | 1 | $613.59 | |
| 40 | 6506-106 | CARBURETOR ASSEMBLY-CENTER | 1 | $833.95 | |
| 40 | 6506-105 | CARBURETOR, ASSEMBLY-PTO | 1 | $834.95 | |
| 41 | 6505-916 | GASKET | 1 | $24.95 | |
| 42 | 6505-919 | THROTTLE ROD ASSY-BN38I/28-1A | 1 | $129.95 | |
| 43 | 6505-858 | END,ADJUSTER-LEFT HAND THDS | 1 | $23.59 | |
| 44 | 6505-922 | LINK,BALL-CENTER BN38I/29-1A | 1 | $46.95 | |
| 45 | 6505-860 | NUT,JAM | 1 | $12.35 | |
| 46 | 6505-859 | NUT,JAM-LEFT | 1 | $2.99 | |
| 47 | 6505-921 | LINK,TURNBUCKLE-BN38/578 | 1 | $32.95 | |
| 48 | 0624-289 | SCREW,CAP-HH 1/4-20 X 1 SS | 1 | $0.87 | |
| 49 | 0624-120 | CLAMP,HOSE (SNP06) | 1 | $2.19 | |
| 51 | 0670-573 | PUMP,FUEL | 1 | $152.95 | |
| 52 | 0624-022 | WASHER,FLAT-6MM SS | 1 | $0.22 |
