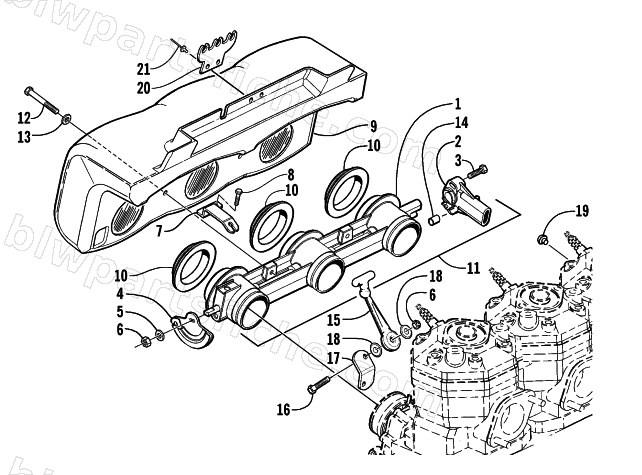

1999 Arctic Cat TS 1100 LI — INTAKE ASSEMBLY
1999 TS 1100 LI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1670-229 | BODY,THROTTLE-ASSY | 1 | $573.95 | |
| 2 | 0630-121 | SENSOR,THROTTLE POSITION | 1 | $251.95 | |
| 3 | 3670-024 | SCREW,HWH#10-24X1 SS | 1 | $0.60 | |
| 4 | 1670-055 | ARM, THROTTLE-ASSY | 1 | $35.95 | |
| 5 | 0624-022 | WASHER,FLAT-6MM SS | 1 | $0.22 | |
| 6 | 0624-250 | NUT,LOCK-NSL M6-1.0 SS | 1 | $0.68 | |
| 7 | 0670-999 | BRACKET,THROTTLE CABLE | 1 | $9.59 | |
| 8 | 0624-504 | SCREW,CAP-HH M6-1.0X10 NYLON PATCH | 1 | $0.87 | |
| 9 | 1673-612 | AIRBOX | 1 | $43.79 | |
| 12 | 0624-032 | SCREW,CAP-HH M6X90 NYLON PATCH SS | 1 | $0.75 | |
| 13 | 0624-299 | WASHER,SEALING-1/4 SS | 1 | $0.92 | |
| 14 | 3670-027 | BUTTON,THROTTLE POSITION SENSOR | 1 | $2.69 | |
| 16 | 0624-052 | SCREW,CAP-HH-6MM-1.0TX35MM(SS) | 1 | $2.09 | |
| 17 | 1673-712 | BRACKET,HOLD DOWN-45 | 1 | $5.59 | |
| 18 | 0623-591 | WASHER,CUP ALUM.- BLACK | 1 | $1.19 | |
| 19 | 1673-713 | BUMPER,RUBBER-(24042) | 1 | $1.59 | |
| 20 | 1673-733 | CLIP,HT LEAD-3 WIRE | 1 | $6.95 | |
| 21 | 0623-778 | RIVET, BULBEX-BF01-0625 | 1 | $1.09 |
