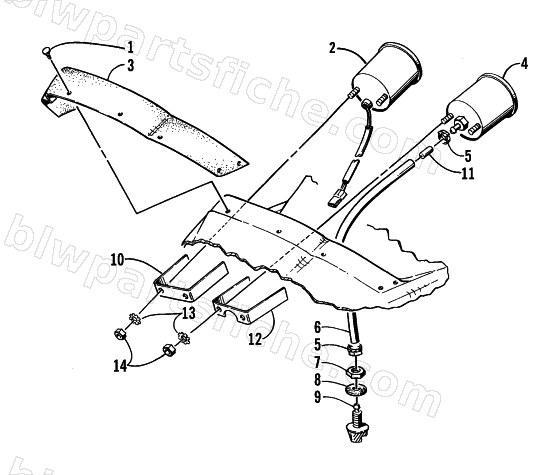

INSTRUMENT ASSEMBLY
1999 TS 1100 LI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0623-725 | CLIP,RETAINING-BLACK | 1 | $0.75 | |
| 2 | 0620-227 | GAUGE,FUEL/OIL/OH-3" | 1 | $432.95 | |
| 3 | 1673-647 | VISOR,GAUGE | 1 | $37.59 | |
| 4 | 0620-231 | SPEEDOMETER,3" | 1 | $339.95 | |
| 5 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 | |
| 6 | 0673-809 | TUBING,VINYL-20FT | 1 | $39.95 | |
| 10 | 0620-201 | BACKCLAMP,TACHOMETER | 1 | $17.87 | |
| 12 | 0620-199 | BRACKET,GAUGE-3" | 1 | $5.92 | |
| 13 | 0623-702 | WASHER,STAR-#8 BRASS | 1 | $0.92 | |
| 14 | 0623-701 | NUT,HEX-8-32 | 1 | $0.18 |
