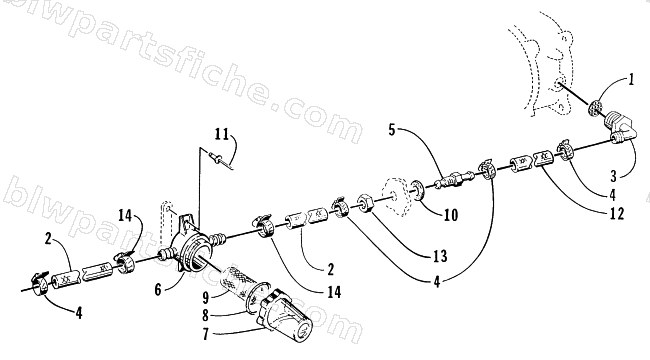

1998 Arctic Cat TS-R 770 — WATER FILTER ASSEMBLY
1998 TS-R 770
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0675-042 | SCREEN | 1 | $6.75 | |
| 2 | 0710-190 | HOSE,WATER-.625X25' | 1 | $61.79 | |
| 3 | 1673-158 | FITTING,ELBOW-.625 BARB X .75 MPT EL345 | 1 | $2.99 | |
| 4 | 0624-016 | CLAMP,HOSE-6708-5 (7/16-1) #8 | 1 | $2.99 | |
| 5 | 1673-450 | FITTING,BULKHEAD-5/8" | 1 | $18.59 | |
| 8 | 0673-670 | O-RING | 1 | $6.29 | |
| 10 | 1673-193 | GASKET,CABLE-FOAM | 1 | $3.49 | |
| 11 | 8060-428 | RIVET,BLIND-DH AA56 BLK | 1 | $0.81 | |
| 12 | 0710-206 | HOSE,FORMED-WATER | 1 | $11.29 | |
| 13 | 0623-648 | NUT, BRASS HEX-3/4-16 | 1 | $20.59 |
