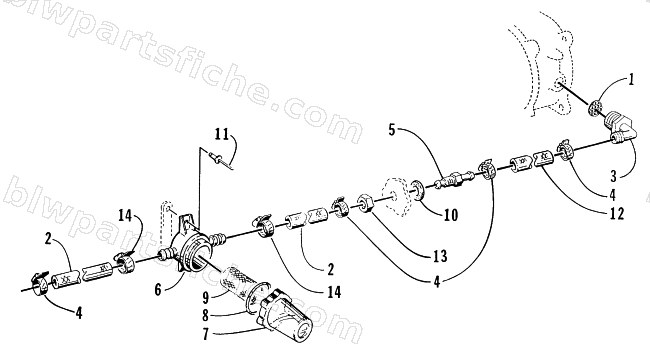

1998 Arctic Cat TS-R 1000 — WATER FILTER ASSEMBLY
1998 TS-R 1000
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0675-042 | SCREEN | 1 | $6.75 | |
| 2 | 0610-268 | HOSE,WATER-1/2 HI TEMP 25' 0619-343 | 1 | $97.29 | |
| 3 | 0673-850 | FITTING,ELBOW-1/2 BARB X 3/4 MPT (NYLON) | 1 | $11.29 | |
| 4 | 0624-016 | CLAMP,HOSE-6708-5 (7/16-1) #8 | 1 | $2.99 | |
| 5 | 1673-447 | FITTING,BULKHEAD-1/2" | 1 | $3.39 | |
| 8 | 0673-670 | O-RING | 1 | $6.29 | |
| 10 | 0676-001 | GASKET,FOAM (7/8 I D) | 1 | $0.79 | |
| 11 | 8060-428 | RIVET,BLIND-DH AA56 BLK | 1 | $0.81 | |
| 12 | 0710-196 | HOSE,WATER 5/8-12 | 1 | $3.09 | |
| 13 | 0623-709 | NUT,JAM-7/8-14 NYLON (0487514HJN) | 1 | $1.69 |
