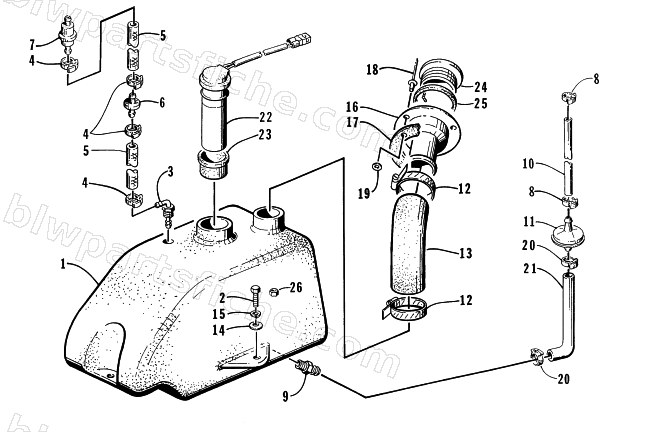

1998 Arctic Cat TS-R 1000 — OIL TANK ASSEMBLY
1998 TS-R 1000
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 4 | 0624-120 | CLAMP,HOSE (SNP06) | 1 | $2.19 | |
| 5 | 0710-425 | HOSE,FUEL-25' (ISO8469) | 1 | $95.59 | |
| 7 | 0470-988 | FILTER,FUEL-INLINE | 1 | $17.87 | |
| 8 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 9 | 0670-718 | FITTING,TANK-1/4MPTX1/2 HB-NYLON | 1 | $2.95 | |
| 10 | 0610-008 | HOSE, GAS LINE-3/16X25' | 1 | $93.95 | |
| 12 | 0624-019 | CLAMP,HOSE-MS35842-12 (SS)11/16-2 | 1 | $3.49 | |
| 13 | 0610-292 | HOSE,OIL FILLER-1.5" | 1 | $26.95 | |
| 14 | 0624-182 | WASHER,FLAT-6.4MM ID X 18MM OD X 1.6T (S | 1 | $0.52 | |
| 16 | 0670-697 | FILLER,OIL-ASSY | 1 | $49.95 | |
| 17 | 0670-679 | GASKET,FILLER-OIL | 1 | $1.69 | |
| 18 | 8060-633 | RIVET,BLIND-DH AA614 BLK | 1 | $1.09 | |
| 19 | 0623-603 | WASHER,BACKUP-ABUP6 | 1 | $0.43 | |
| 20 | 0623-486 | CLAMP,HOSE (SNP14) | 1 | $2.39 | |
| 21 | 0610-018 | HOSE 1/2 X15' | 1 | $257.95 | |
| 23 | 0609-237 | SEAL,GROMMET-OIL SENSOR (REF 0609-224) | 1 | $3.44 | |
| 24 | 0670-877 | CAP ASSY-OIL FILLER (CAP,CHAIN,SEAL) | 1 | $61.95 | |
| 25 | 0670-878 | SEAL,CAP-OIL FILLER | 1 | $6.89 | |
| 26 | 0624-005 | NUT,LOCK-M5-.8 (SS) | 1 | $1.19 |
