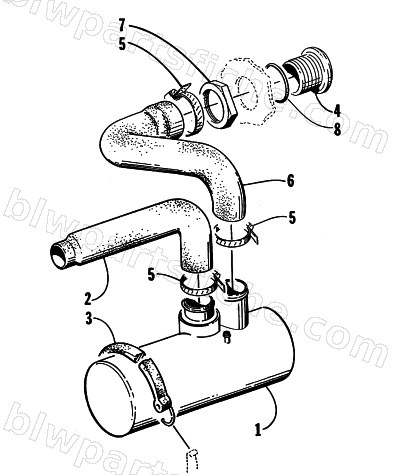

MUFFLER ASSEMBLY

1998 TS-R 1000

Scroll / pinch to zoom · drag to pan · double-click resets

#	Part No.	Description	Qty	Price
1	0712-243	MUFFLER-WELDT	1	$560.95
2	0610-290	HOSE,EXHAUST-IN	1	$68.29
3	0773-805	STRAP-ASSY.8 5/8-90	1	$9.79
5	0624-169	CLAMP,HOSE {3 1/2"} MS35842-14	1	$4.59
6	0610-323	HOSE,EXHAUST-OUT	1	$178.29
7	0612-576	NUT,EXHAUST OUTLET	1	$17.95
