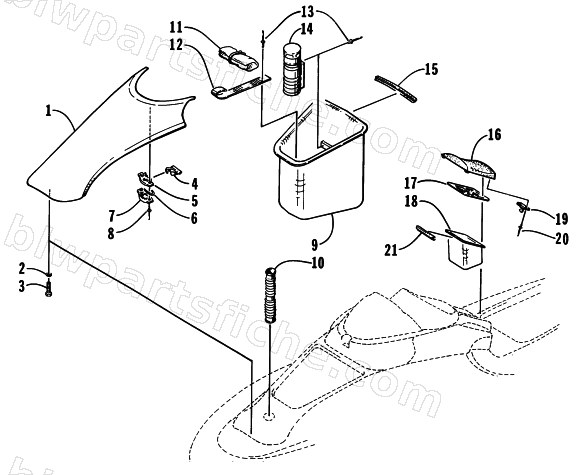

1998 Arctic Cat TS-L 640 — HATCH COVER AND STORAGE TRAY
1998 TS-L 640
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1673-605 | HATCH,CARIB BLUE-3 UP | 1 | $220.59 | |
| 2 | 0624-115 | WASHER,LOCK-SL .250 SS | 1 | $0.21 | |
| 3 | 0624-432 | SCREW,SELF-TAP-HH-1/4-14X5/8 TYPE B | 1 | $2.59 | |
| 4 | 1673-459 | LEVER,LATCH-60% | 1 | $2.69 | |
| 8 | 0623-778 | RIVET, BULBEX-BF01-0625 | 1 | $1.09 | |
| 9 | 1673-566 | TRAY,STORAGE | 1 | $63.95 | |
| 10 | 0610-340 | HOSE,AIR INTAKE | 1 | $58.29 | |
| 13 | 0623-685 | RIVET,ADS54ABSLF | 1 | $3.95 | |
| 14 | 1673-046 | TUBE,FIRE EXTINGUISHER | 1 | $43.95 | |
| 15 | 1673-567 | SEAL,HATCH | 1 | $59.95 | |
| 17 | 1673-576 | CARGO NET | 1 | $2.39 | |
| 18 | 1673-482 | GLOVE BOX | 1 | $18.95 | |
| 19 | 1673-516 | STRIKE,LATCH | 1 | $2.29 | |
| 20 | 8060-230 | RIVET,BLIND-DH AA48 BLK | 1 | $0.15 | |
| 21 | 1673-494 | SEAL,GLOVE BOX | 1 | $129.95 |
