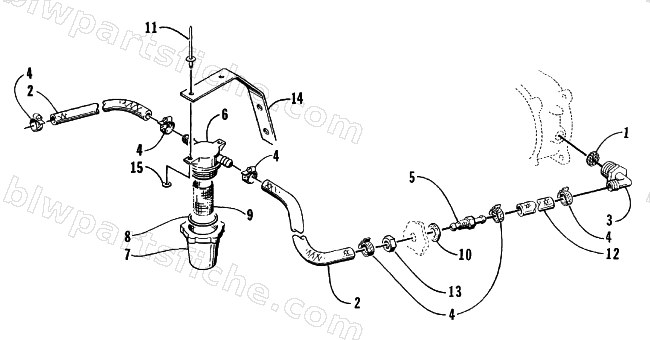

WATER FILTER ASSEMBLY
1998 TS-L 1000
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0675-042 | SCREEN | 1 | $6.75 | |
| 2 | 0610-268 | HOSE,WATER-1/2 HI TEMP 25' 0619-343 | 1 | $97.29 | |
| 3 | 0673-850 | FITTING,ELBOW-1/2 BARB X 3/4 MPT (NYLON) | 1 | $11.29 | |
| 4 | 0624-016 | CLAMP,HOSE-6708-5 (7/16-1) #8 | 1 | $2.99 | |
| 5 | 1673-447 | FITTING,BULKHEAD-1/2" | 1 | $3.39 | |
| 8 | 0673-670 | O-RING | 1 | $6.29 | |
| 10 | 0676-001 | GASKET,FOAM (7/8 I D) | 1 | $0.79 | |
| 11 | 8060-428 | RIVET,BLIND-DH AA56 BLK | 1 | $0.81 | |
| 12 | 0710-196 | HOSE,WATER 5/8-12 | 1 | $3.09 | |
| 13 | 0623-709 | NUT,JAM-7/8-14 NYLON (0487514HJN) | 1 | $1.69 | |
| 14 | 0676-009 | MOUNT,WATER STRAINER | 1 | $14.95 | |
| 15 | 0624-025 | WASHER,FLAT-4MM SS | 1 | $0.44 |
