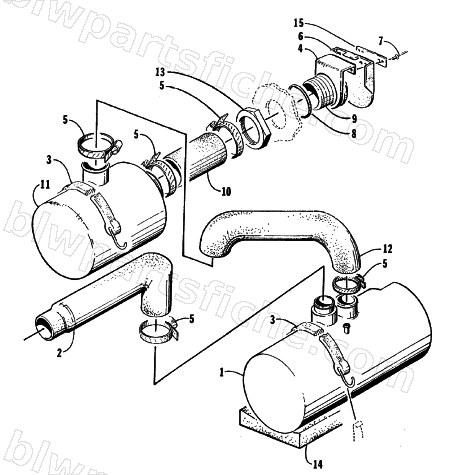

1998 Arctic Cat TS-L 1000 — MUFFLER ASSEMBLY
1998 TS-L 1000
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0712-316 | MUFFLER- WELDT (L) | 1 | $211.79 | |
| 2 | 0610-321 | HOSE,EXHAUST-IN | 1 | $80.29 | |
| 4 | 1673-411 | BRKT,SOUND DIFFUSER | 1 | $66.95 | |
| 5 | 0624-169 | CLAMP,HOSE {3 1/2"} MS35842-14 | 1 | $4.59 | |
| 6 | 1673-413 | FLAP,SOUND DIFFUSER | 1 | $24.77 | |
| 7 | 0623-590 | RIVET AD68AH | 1 | $0.92 | |
| 10 | 0610-371 | HOSE,EXHAUST- OUT | 1 | $15.95 | |
| 11 | 0712-338 | MUFFLER- WELDT | 1 | $257.95 | |
| 12 | 0610-370 | HOSE,EXHAUST-INTERMEDIATE | 1 | $223.95 | |
| 13 | 0612-576 | NUT,EXHAUST OUTLET | 1 | $17.95 | |
| 14 | 1673-585 | FOAM,SUPPORT-MUFFLER | 1 | $43.95 | |
| 15 | 1673-412 | PLATE,BACKING-SOUND DIFFUSER | 1 | $6.06 |
