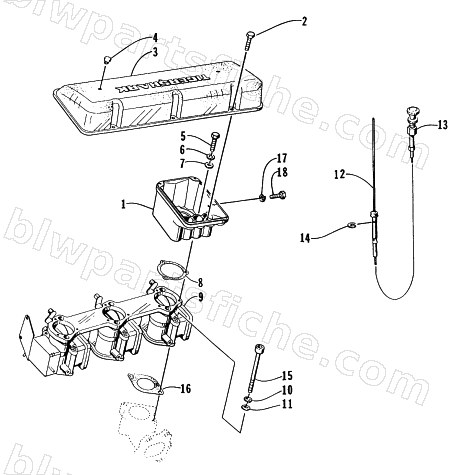

1998 Arctic Cat TS-L 1000 — INTAKE ASSEMBLY
1998 TS-L 1000
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1673-403 | BASE,SOUND ATTENUATOR | 1 | $77.95 | |
| 2 | 0624-408 | SCREW,CAP TRILOBULAR-HWH10-24X.75 | 1 | $6.59 | |
| 3 | 1673-332 | COVER,SOUND ATTENUATOR-TRIPLE | 1 | $209.95 | |
| 4 | 1606-038 | BUMPER, AIR SILENCER | 1 | $1.95 | |
| 5 | 0624-112 | SCREW,CAP HH6MM 1.0TX25MM | 1 | $0.65 | |
| 7 | 0624-022 | WASHER,FLAT-6MM SS | 1 | $0.22 | |
| 8 | 1673-091 | GASKET,SOUND ATTENUATOR-BN38 | 1 | $0.87 | |
| 9 | 0670-884 | CARBURETOR-BN (BN40I-38-C38) | 1 | $2,625.95 | |
| 10 | 0624-027 | WASHER,LOCK-SL 8MM SS | 1 | $0.44 | |
| 11 | 0624-028 | WASHER,FLAT-8MM SS | 1 | $0.40 | |
| 12 | 0687-105 | CABLE,CHOKE-TRIPLE | 1 | $85.95 | |
| 13 | 0687-051 | NUT, CHOKE CABLE MOUNT | 1 | $4.99 | |
| 14 | 0624-268 | RING,RETAINING-1/4 SS | 1 | $2.19 | |
| 15 | 0624-338 | SCREW, CAP - HSH 8MMX1.25X80 | 1 | $8.59 | |
| 16 | 1673-415 | GASKET,INTAKE-BN42 | 1 | $13.95 | |
| 17 | 0624-200 | WASHER,LOCK-M5 (SS) | 1 | $0.71 | |
| 18 | 0624-155 | SCREW,CAP-HH M5-.8X16 SS | 1 | $0.87 |
