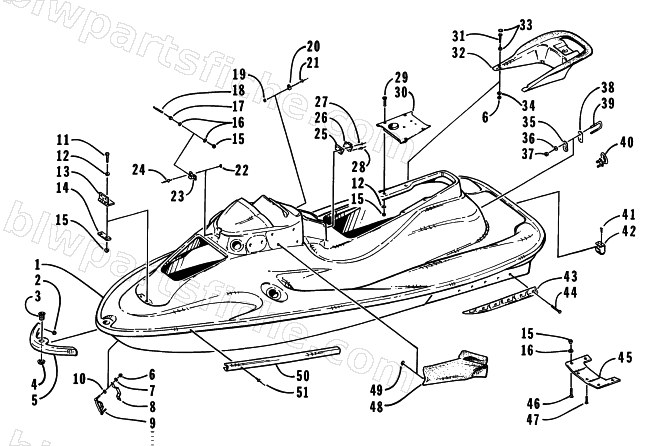

1998 Arctic Cat TS-L 1000 — HULL AND RELATED PARTS ASSEMBLY
1998 TS-L 1000
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0773-936 | HULL/DECK ASSY-98 1000 L (SP) | 1 | $5,082.79 | |
| 2 | 0624-005 | NUT,LOCK-M5-.8 (SS) | 1 | $1.19 | |
| 4 | 0623-753 | NUT,HEX FLANGE-( ) | 1 | $6.29 | |
| 5 | 1673-546 | NOSECONE,BLACK | 1 | $172.95 | |
| 6 | 0624-089 | NUT,LOCK-HH 1/4 20 (SS) | 1 | $1.39 | |
| 7 | 0624-247 | WASHER,FLAT (SS) .250X.562 | 1 | $0.75 | |
| 8 | 0673-897 | STRAP,REINFORCEMENT | 1 | $15.11 | |
| 9 | 0773-516 | BOWEYE-WELDMENT | 1 | $66.95 | |
| 10 | 0624-299 | WASHER,SEALING-1/4 SS | 1 | $0.92 | |
| 11 | 0624-112 | SCREW,CAP HH6MM 1.0TX25MM | 1 | $0.65 | |
| 12 | 0624-022 | WASHER,FLAT-6MM SS | 1 | $0.22 | |
| 13 | 1673-032 | HINGE | 1 | $180.95 | |
| 14 | 1673-031 | PLATE,BACKING-HINGE | 1 | $4.89 | |
| 15 | 0624-250 | NUT,LOCK-NSL M6-1.0 SS | 1 | $0.68 | |
| 16 | 0624-182 | WASHER,FLAT-6.4MM ID X 18MM OD X 1.6T (S | 1 | $0.52 | |
| 17 | 0624-059 | NUT,JAM-6MM 1.0T (SS) | 1 | $1.19 | |
| 19 | 0623-603 | WASHER,BACKUP-ABUP6 | 1 | $0.43 | |
| 20 | 1673-578 | RECEIVER,HINGE-STRBRD | 1 | $2.89 | |
| 20 | 1673-579 | RECEIVER,HINGE-PORT | 1 | $2.89 | |
| 21 | 8060-633 | RIVET,BLIND-DH AA614 BLK | 1 | $1.09 | |
| 22 | 0624-004 | WASHER,FLAT-M5 (SS) | 1 | $0.44 | |
| 23 | 1673-483 | BRACKET,LATCH STUD | 1 | $22.01 | |
| 24 | 0624-072 | RIVET,SS/SS68D | 1 | $1.29 | |
| 25 | 1673-609 | PAD,MOUNTING-LATCH | 1 | $15.11 | |
| 26 | 1673-592 | LATCH,GLOVE BOX | 1 | $37.95 | |
| 27 | 0623-763 | RIVET,DRIVE-UH .125X.422-.453 (ALUM) | 1 | $3.69 | |
| 28 | 8060-211 | RIVET,BLIND-DH AA410 PL | 1 | $0.25 | |
| 29 | 0624-184 | SCREW,MACH-TSFH 6MM-1.0 X 25MM (SS) | 1 | $2.19 | |
| 30 | 1673-480 | BRIDGE,SEAT MOUNTING | 1 | $73.95 | |
| 31 | 0624-271 | SCREW,MACH-PHPNH-1/4-20 X 1 (SS) | 1 | $0.55 | |
| 32 | 1673-417 | HANDLE,GRAB-BLACK | 1 | $149.95 | |
| 33 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 34 | 0624-228 | WASHER,FLAT-.281X.625X.037 (SS) | 1 | $0.68 | |
| 37 | 0624-258 | NUT,LOCK 3/8-16 SS | 1 | $1.39 | |
| 41 | 0623-750 | CLIP,RETAINING-CA RED | 1 | $0.71 | |
| 43 | 0673-996 | SPONSON, RH BLK | 1 | $86.95 | |
| 43 | 0673-997 | SPONSON, LH BLK | 1 | $81.95 | |
| 45 | 0675-179 | PLATE,RIDE | 1 | $119.95 | |
| 46 | 0624-186 | SCREW,MACH-TSFH 6MM-1.0 X 35MM (SS) | 1 | $2.19 | |
| 48 | 1673-562 | PAD,KNEE-STRBRD CA RED | 1 | $247.95 | |
| 48 | 1673-563 | PAD,KNEE-PORT CA RED | 1 | $262.95 | |
| 49 | 0623-737 | INSERT,BRASS-AKB2-420-390 (.25 X 20) | 1 | $5.59 | |
| 50 | 1673-509 | RUB RAIL,PORT-CA RED(USE 1773-045 BLK) | 1 | $99.95 | |
| 51 | 0624-068 | RIVET,SS/SS610D | 1 | $1.39 |
