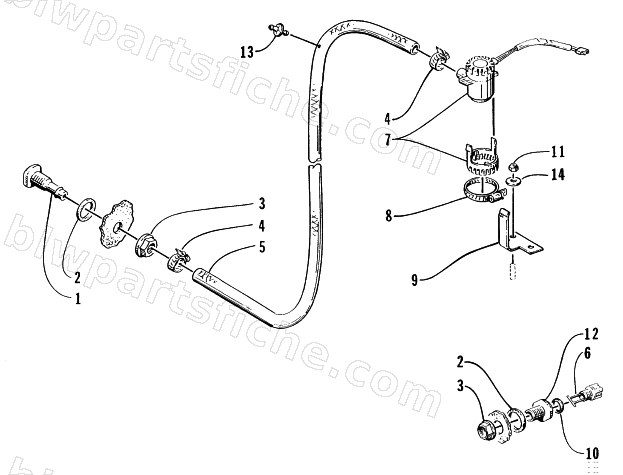

1998 Arctic Cat TS-L 1000 — BILGE PUMP ASSEMBLY
1998 TS-L 1000
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 3 | 0623-753 | NUT,HEX FLANGE-( ) | 1 | $6.29 | |
| 4 | 0624-018 | CLAMP,HOSE-6712-5 (1/2-1 1/4) #12 | 1 | $3.29 | |
| 5 | 0710-201 | HOSE,BILGE-W/ANTISIPHON (48) | 1 | $24.77 | |
| 8 | 0624-037 | CLAMP,HOSE-6736-5 (SS) 7/8 -2-3/4 | 1 | $5.29 | |
| 10 | 0673-459 | O-RING,3/4ID X 1/16 (-018) | 1 | $1.23 | |
| 11 | 0624-250 | NUT,LOCK-NSL M6-1.0 SS | 1 | $0.68 | |
| 14 | 0624-182 | WASHER,FLAT-6.4MM ID X 18MM OD X 1.6T (S | 1 | $0.52 |
