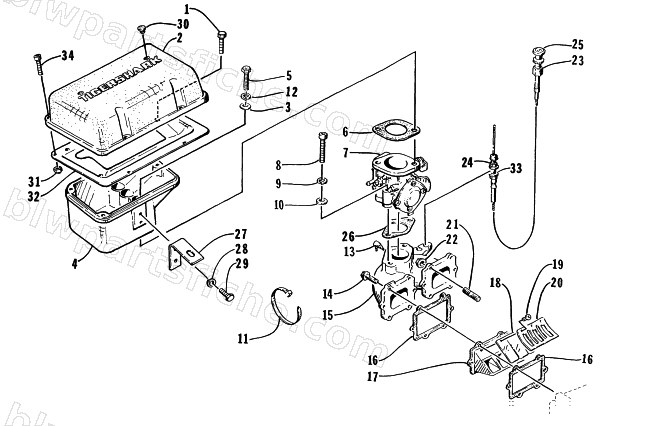

INTAKE ASSEMBLY
1998 TS 770
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0624-442 | SCREW,MACH-HWH 10-24X5/8 SS | 1 | $2.29 | |
| 2 | 1673-255 | COVER,SOUND ATTENUATOR-DUAL | 1 | $18.79 | |
| 3 | 0624-022 | WASHER,FLAT-6MM SS | 1 | $0.22 | |
| 5 | 0624-112 | SCREW,CAP HH6MM 1.0TX25MM | 1 | $0.65 | |
| 6 | 1673-398 | GASKET,SOUND ATTENUATOR | 1 | $28.59 | |
| 7 | 0670-724 | CARBURATOR,BN40I-38-21 | 1 | $536.79 | |
| 8 | 0624-338 | SCREW, CAP - HSH 8MMX1.25X80 | 1 | $8.59 | |
| 9 | 0624-027 | WASHER,LOCK-SL 8MM SS | 1 | $0.44 | |
| 10 | 0624-028 | WASHER,FLAT-8MM SS | 1 | $0.40 | |
| 11 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 | |
| 13 | 3008-655 | VALVE,CHECK | 1 | $41.79 | |
| 14 | 3008-213 | SCREW,CAP-HWH M6X25 | 1 | $4.19 | |
| 15 | 0670-732 | MANIFOLD,INTAKE-MACH | 1 | $133.95 | |
| 16 | 3005-432 | GASKET, REED VALVE | 1 | $17.87 | |
| 17 | 3008-578 | VALVE,REED-ASSY | 1 | $188.95 | |
| 18 | 3008-574 | VALVE, REED - 0.25 | 1 | $37.95 | |
| 19 | 3004-210 | SCREW, REED VALVE-M3X8 | 1 | $4.95 | |
| 21 | 3008-370 | BOLT,6X25 | 1 | $4.69 | |
| 22 | 3008-214 | NUT,FLANGE-M6 | 1 | $4.09 | |
| 23 | 0687-051 | NUT, CHOKE CABLE MOUNT | 1 | $4.99 | |
| 24 | 0624-057 | NUT,HEX 6MM 1.0T (SS) | 1 | $1.09 | |
| 25 | 0687-077 | CABLE,CHOKE | 1 | $97.95 | |
| 26 | 1673-090 | GASKET,INTAKE-BN38 | 1 | $1.19 | |
| 27 | 1673-429 | BRACE,SOUND ATTENUATOR | 1 | $9.59 | |
| 28 | 0624-200 | WASHER,LOCK-M5 (SS) | 1 | $0.71 | |
| 29 | 0624-155 | SCREW,CAP-HH M5-.8X16 SS | 1 | $0.87 | |
| 30 | 1606-038 | BUMPER, AIR SILENCER | 1 | $1.95 | |
| 31 | 0624-443 | NUT,LOCK-10-24 SS | 1 | $1.19 | |
| 32 | 0670-794 | PLATE,ADAPTER-WELD'T | 1 | $56.79 |
