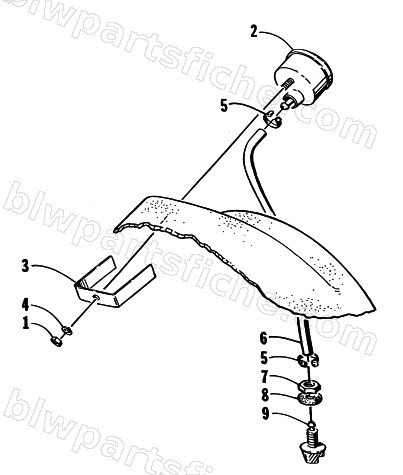

1997 Arctic Cat MONTEGO — INSTRUMENT ASSEMBLY
1997 MONTEGO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0623-701 | NUT,HEX-8-32 | 1 | $0.18 | |
| 2 | 0620-188 | SPEEDOMETER-2" | 1 | $337.95 | |
| 3 | 0620-177 | BACKCLAMP,SPEEDOMETER | 1 | $3.69 | |
| 4 | 0623-702 | WASHER,STAR-#8 BRASS | 1 | $0.92 | |
| 5 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 | |
| 6 | 0673-809 | TUBING,VINYL-20FT | 1 | $39.95 |
