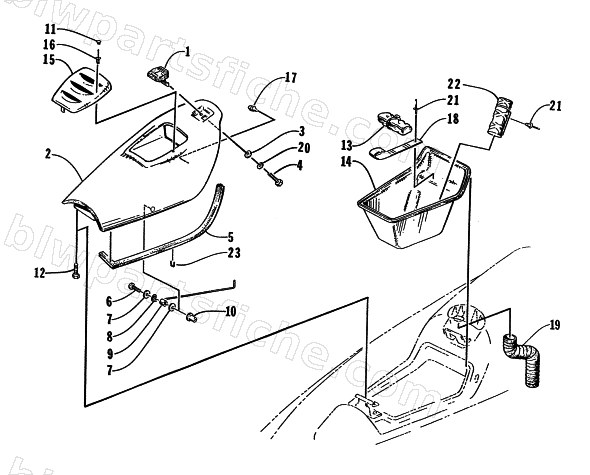

1997 Arctic Cat MONTEGO — HATCH COVER AND STORAGE TRAY
1997 MONTEGO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0673-882 | LATCH-BLACK | 1 | $48.95 | |
| 2 | 1673-176 | HATCH,YELLOW | 1 | $504.95 | |
| 3 | 0624-004 | WASHER,FLAT-M5 (SS) | 1 | $0.44 | |
| 4 | 0624-092 | SCREW,CAP HH 5MM .8TX20MM (SS) | 1 | $1.29 | |
| 5 | 0773-638 | HATCH SEAL MFG.ASSY-58.5 | 1 | $61.95 | |
| 6 | 0624-214 | SCREW,CAP-HH M6-1.0 X 30 (SS) | 1 | $2.19 | |
| 7 | 0624-182 | WASHER,FLAT-6.4MM ID X 18MM OD X 1.6T (S | 1 | $0.52 | |
| 8 | 0673-899 | ROD,PROP-HATCH | 1 | $24.77 | |
| 11 | 1673-210 | PLUG,MUSHROOM-YELLOW | 1 | $0.57 | |
| 14 | 1673-175 | TRAY,STORAGE | 1 | $62.29 | |
| 15 | 1673-233 | GRILLE,HATCH-YELLOW | 1 | $9.29 | |
| 16 | 0623-619 | RIVET-A\A 48 D | 1 | $0.33 | |
| 19 | 0610-287 | HOSE,AIR-INTAKE | 1 | $99.79 | |
| 20 | 0624-200 | WASHER,LOCK-M5 (SS) | 1 | $0.71 | |
| 21 | 0623-685 | RIVET,ADS54ABSLF | 1 | $3.95 | |
| 22 | 1673-046 | TUBE,FIRE EXTINGUISHER | 1 | $43.95 | |
| 23 | 0624-100 | STAPLE,3/8L X 1/2W-20GA SS-SEAT | 1 | $0.12 |
