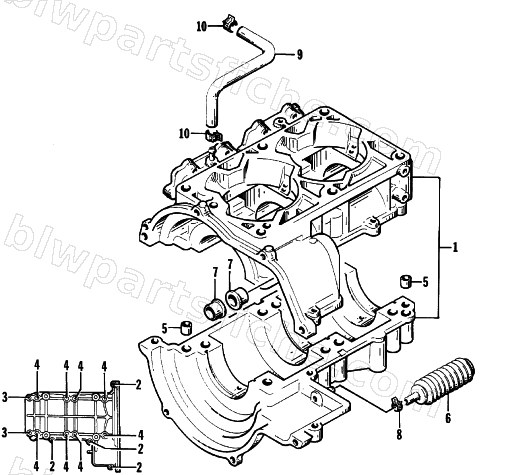

1997 Arctic Cat MONTE CARLO 640 — CRANKCASE
1997 MONTE CARLO 640
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3008-382 | CRANKCASE-ASSY | 1 | $2,049.95 | |
| 2 | 3008-210 | BOLT, 6X35 | 1 | $4.19 | |
| 4 | 3008-212 | BOLT, 10X70 | 1 | $13.73 | |
| 5 | 3008-199 | PIN, KNOCK(ALIGNMENT) | 1 | $3.16 | |
| 7 | 3008-105 | BUSHING, PINION SHAFT | 1 | $41.95 | |
| 9 | 3008-200 | HOSE, VACUUM,M5.3X10.5X600 | 1 | $26.95 | |
| 10 | 3008-039 | CLIP, ID:10.5 | 1 | $3.49 |
