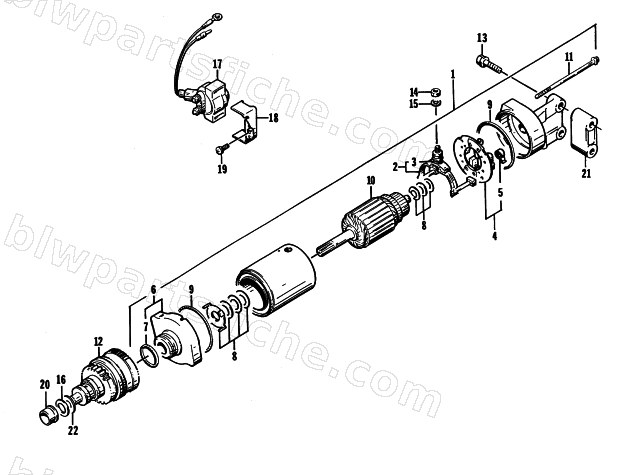

STARTER MOTOR ASSEMBLY
1997 MONTE CARLO 1000
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3008-536 | MOTOR ASSY, STARTING | 1 | $689.95 | |
| 2 | 3008-094 | TERMINAL, SET BRUSH | 1 | $93.95 | |
| 3 | 3008-164 | O-RING | 1 | $6.95 | |
| 4 | 3008-095 | HOLDER SET, BRUSH | 1 | $88.95 | |
| 5 | 3008-096 | SPRING, BRUSH | 1 | $6.75 | |
| 6 | 3008-328 | BRACKET,FRONT | 1 | $194.95 | |
| 7 | 3008-363 | O-RING | 1 | $3.95 | |
| 8 | 3008-099 | SHIM SET, STARTING MOTOR | 1 | $20.63 | |
| 9 | 3008-553 | O-RING, STARTER MOTOR | 1 | $19.25 | |
| 10 | 3008-103 | ARMATURE, STARTER | 1 | $417.95 | |
| 11 | 3008-102 | BOLT | 1 | $50.95 | |
| 12 | 3008-408 | PINION ASSY, STARTING MOTOR | 1 | $678.95 | |
| 13 | 3008-447 | BOLT, STARTING MOTOR,6MM | 1 | $5.59 | |
| 14 | 3008-014 | NUT, 6MM | 1 | $2.06 | |
| 15 | 3008-020 | WASHER, LOCK,6MM | 1 | $1.99 | |
| 18 | 3008-140 | BRACKET, TRIM RELAY | 1 | $9.59 | |
| 19 | 3008-313 | SCREW,6X12 | 1 | $3.09 | |
| 20 | 3008-105 | BUSHING, PINION SHAFT | 1 | $41.95 | |
| 21 | 3008-277 | SPACER | 1 | $33.79 | |
| 22 | 3008-537 | WASHER, THRUST | 1 | $14.95 |
