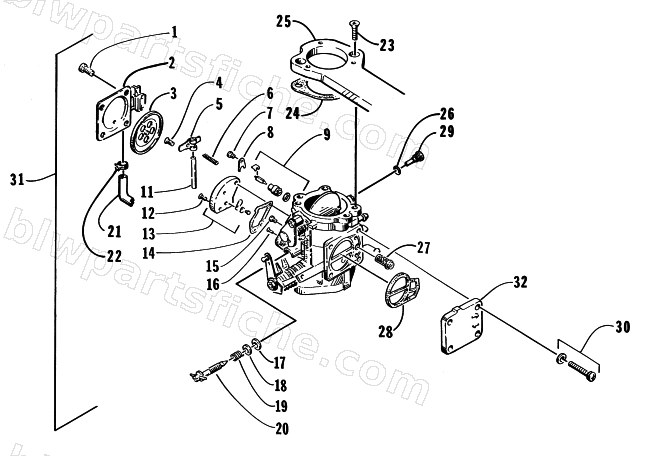

1997 Arctic Cat DAYTONA 700 — PTO-SIDE CARBURETOR
1997 DAYTONA 700
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0670-670 | CARBURETOR ASSY (BN38I-37-B35) | 1 | $1,946.95 | |
| 1 | 6505-943 | SCREW | 1 | $2.79 | |
| 2 | 6505-940 | DIAPHRAGM COVER ASSY | 1 | $324.95 | |
| 3 | 6505-663 | DIAPHRAM ASS'Y | 1 | $59.95 | |
| 4 | 6505-692 | SCREW | 1 | $1.95 | |
| 5 | 6505-664 | ARM | 1 | $12.59 | |
| 6 | 6505-934 | SPRING,POP OFF-51 GRAM | 1 | $10.95 | |
| 7 | 6505-695 | SCREW | 1 | $4.29 | |
| 8 | 6505-682 | PLATE | 1 | $4.79 | |
| 9 | 6505-944 | NEEDLE VALVE ASSY | 1 | $61.95 | |
| 11 | 6505-681 | PIN | 1 | $1.59 | |
| 12 | 6505-679 | SCREW | 1 | $0.87 | |
| 13 | 6505-680 | BLOCK, METERING | 1 | $64.95 | |
| 14 | 6505-677 | GASKET | 1 | $32.95 | |
| 15 | 6505-737 | JET, HIGH SPEED, 120 | 1 | $7.59 | |
| 16 | 6505-770 | JET, LOW SPEED, 60 | 1 | $10.97 | |
| 17 | 6505-668 | O-RING | 1 | $1.79 | |
| 18 | 6505-661 | WASHER | 1 | $1.49 | |
| 19 | 6505-660 | SPRING | 1 | $2.49 | |
| 20 | 6505-852 | ADJUSTER ASS'Y | 1 | $34.95 | |
| 21 | 6505-942 | HOSE | 1 | $7.59 | |
| 22 | 6505-941 | CLIP | 1 | $6.95 | |
| 23 | 6505-914 | SCREW | 1 | $4.29 | |
| 24 | 6505-916 | GASKET | 1 | $24.95 | |
| 25 | 6505-926 | CARBURETOR ADAPTER PLATE | 1 | $190.95 | |
| 26 | 6505-042 | O-RING | 1 | $4.95 | |
| 27 | 6505-676 | FILTER | 1 | $14.95 | |
| 28 | 6505-665 | S-GASKET | 1 | $69.95 | |
| 29 | 6505-937 | JET,HIGH SPEED FIXED-80 | 1 | $10.97 | |
| 30 | 6505-853 | SCREW W/WASHER | 1 | $6.95 | |
| 32 | 6505-848 | COVER,PUMP | 1 | $61.95 |
