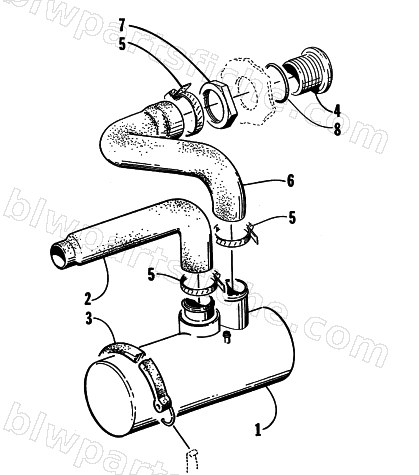

1997 Arctic Cat DAYTONA 1000 — MUFFLER ASSEMBLY
1997 DAYTONA 1000
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0712-243 | MUFFLER-WELDT | 1 | $560.95 | |
| 2 | 0610-290 | HOSE,EXHAUST-IN | 1 | $68.29 | |
| 3 | 0773-805 | STRAP-ASSY.8 5/8-90 | 1 | $9.79 | |
| 5 | 0624-169 | CLAMP,HOSE {3 1/2"} MS35842-14 | 1 | $4.59 | |
| 6 | 0610-323 | HOSE,EXHAUST-OUT | 1 | $178.29 | |
| 7 | 0612-576 | NUT,EXHAUST OUTLET | 1 | $17.95 |
