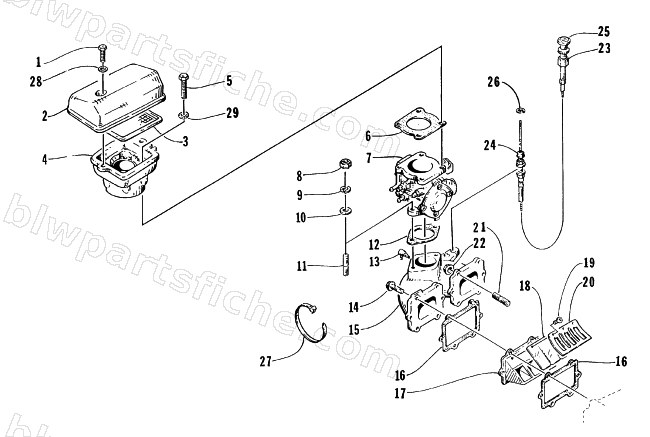

INTAKE ASSEMBLY
1996 MONTEGO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0624-046 | SCREW,CAP-HH 6MM-1.0X16MM SS | 1 | $1.19 | |
| 2 | 3008-177 | R/B 3008-397 | 1 | $46.35 | |
| 3 | 3008-354 | SCREEN,SPARK ARRESTOR | 1 | $108.95 | |
| 4 | 0673-044 | SPARKARRESTOR-LOWER | 1 | $156.95 | |
| 6 | 0673-389 | GASKET,SPARK ARRESTOR | 1 | $1.79 | |
| 7 | 0670-542 | CARBURETOR BN44-40-78 | 1 | $457.29 | |
| 8 | 0624-061 | NUT,JAM 8MM 1.25T (SS) | 1 | $1.19 | |
| 9 | 0624-027 | WASHER,LOCK-SL 8MM SS | 1 | $0.44 | |
| 10 | 0624-028 | WASHER,FLAT-8MM SS | 1 | $0.40 | |
| 11 | 0624-051 | BOLT,STUD 8MM-1.25X1.50 (SS) | 1 | $4.19 | |
| 12 | 0673-057 | GASKET,INTAKE | 1 | $1.99 | |
| 13 | 3008-655 | VALVE,CHECK | 1 | $41.79 | |
| 14 | 3008-213 | SCREW,CAP-HWH M6X25 | 1 | $4.19 | |
| 15 | 0673-734 | MANIFOLD,INTAKE | 1 | $229.79 | |
| 16 | 3005-432 | GASKET, REED VALVE | 1 | $17.87 | |
| 18 | 3008-075 | VALVE, REED | 1 | $32.95 | |
| 19 | 3004-506 | SCREW, 3X8 | 1 | $2.47 | |
| 21 | 3008-657 | BOLT,INTAKE MANIFOLD STUD-M6X20 | 1 | $2.95 | |
| 21 | 3008-370 | BOLT,6X25 | 1 | $4.69 | |
| 22 | 3008-158 | NUT-INTAKE MANIFOLD,6MM | 1 | $2.79 | |
| 22 | 3008-214 | NUT,FLANGE-M6 | 1 | $4.09 | |
| 23 | 0687-051 | NUT, CHOKE CABLE MOUNT | 1 | $4.99 | |
| 24 | 0687-052 | COVER, BOOT | 1 | $5.78 | |
| 25 | 0687-069 | CABLE,CHOKE | 1 | $123.95 | |
| 26 | 0624-268 | RING,RETAINING-1/4 SS | 1 | $2.19 | |
| 27 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 | |
| 28 | 0624-022 | WASHER,FLAT-6MM SS | 1 | $0.22 |
