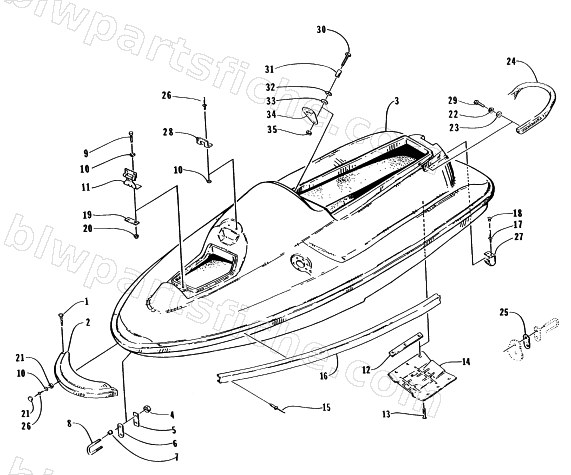

1996 Arctic Cat MONTEGO — HULL AND RELATED PARTS ASSEMBLY
1996 MONTEGO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 3 | 0773-566 | HULL/DECK ASSY-SER-96MTF-W | 1 | $4,140.95 | |
| 4 | 0624-258 | NUT,LOCK 3/8-16 SS | 1 | $1.39 | |
| 5 | 0673-657 | PLATE,BACKING-EYEHOOK | 1 | $6.06 | |
| 6 | 0673-656 | PLATE,BACKUP-EYEHOOK | 1 | $5.29 | |
| 7 | 0624-259 | NUT,CONE 3/8-16 SS | 1 | $13.29 | |
| 8 | 0624-260 | U-BOLT 3/8-16 SS | 1 | $16.49 | |
| 9 | 0624-112 | SCREW,CAP HH6MM 1.0TX25MM | 1 | $0.65 | |
| 10 | 0624-022 | WASHER,FLAT-6MM SS | 1 | $0.22 | |
| 11 | 0673-871 | HINGE | 1 | $73.95 | |
| 12 | 0673-006 | PLATE,NUT 8.10 (SS) | 1 | $26.59 | |
| 13 | 0624-184 | SCREW,MACH-TSFH 6MM-1.0 X 25MM (SS) | 1 | $2.19 | |
| 14 | 0673-676 | PLATE,RIDE | 1 | $186.95 | |
| 15 | 0624-030 | RIVET,SS/SS610LF | 1 | $2.19 | |
| 16 | 0673-916 | TRIM,RH-BLK | 1 | $102.29 | |
| 16 | 0673-954 | TRIM,LH-BLK | 1 | $144.95 | |
| 17 | 0623-619 | RIVET-A\A 48 D | 1 | $0.33 | |
| 19 | 0673-870 | PLATE,HINGE | 1 | $4.69 | |
| 20 | 0624-021 | NUT,LOCK-HEX6MM 1.0T SS | 1 | $0.78 | |
| 21 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 22 | 0624-115 | WASHER,LOCK-SL .250 SS | 1 | $0.21 | |
| 23 | 0624-228 | WASHER,FLAT-.281X.625X.037 (SS) | 1 | $0.68 | |
| 26 | 0624-068 | RIVET,SS/SS610D | 1 | $1.39 | |
| 27 | 0673-975 | COVER,RUB RAIL | 1 | $46.95 | |
| 28 | 0673-866 | STRIKE | 1 | $10.97 | |
| 29 | 0624-289 | SCREW,CAP-HH 1/4-20 X 1 SS | 1 | $0.87 | |
| 30 | 0624-223 | SCREW,CAP-M10 X 60 (SS) DIN 931 | 1 | $5.59 | |
| 31 | 0673-485 | STOP,STEERING POST | 1 | $6.29 | |
| 32 | 0624-008 | WASHER,FLAT-10MM SS | 1 | $0.69 | |
| 33 | 0623-391 | WASHER,RUBBER 10MM ID | 1 | $5.79 | |
| 34 | 0673-417 | PLATE,BACKING-STEERING POST | 1 | $15.79 |
