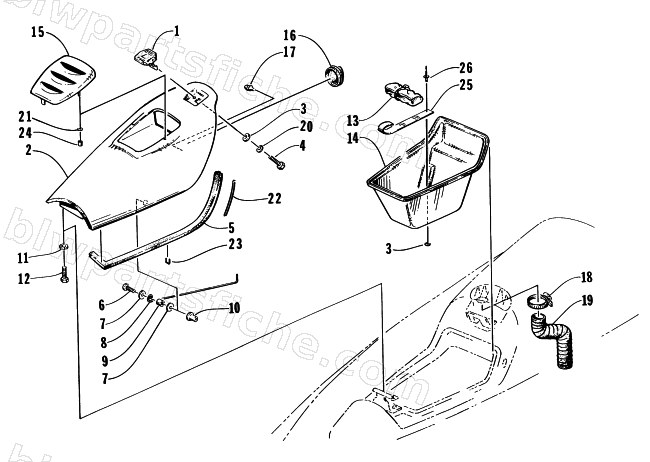

1996 Arctic Cat MONTEGO — HATCH COVER AND STORAGE TRAY
1996 MONTEGO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0673-882 | LATCH-BLACK | 1 | $48.95 | |
| 2 | 0773-777 | COVER,HATCH-ASSY-YELLOW SP 96 MTF,MTG | 1 | $504.95 | |
| 3 | 0624-004 | WASHER,FLAT-M5 (SS) | 1 | $0.44 | |
| 4 | 0624-092 | SCREW,CAP HH 5MM .8TX20MM (SS) | 1 | $1.29 | |
| 5 | 0773-638 | HATCH SEAL MFG.ASSY-58.5 | 1 | $61.95 | |
| 6 | 0624-112 | SCREW,CAP HH6MM 1.0TX25MM | 1 | $0.65 | |
| 7 | 0624-182 | WASHER,FLAT-6.4MM ID X 18MM OD X 1.6T (S | 1 | $0.52 | |
| 8 | 0673-899 | ROD,PROP-HATCH | 1 | $24.77 | |
| 14 | 0673-250 | TRAY STORAGE | 1 | $77.95 | |
| 20 | 0624-200 | WASHER,LOCK-M5 (SS) | 1 | $0.71 | |
| 21 | 0624-361 | RETAINER,PUSH-ON | 1 | $0.87 | |
| 22 | 0773-661 | CORD STOCK/CTL | 1 | $0.78 | |
| 23 | 0624-100 | STAPLE,3/8L X 1/2W-20GA SS-SEAT | 1 | $0.12 | |
| 26 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 |
