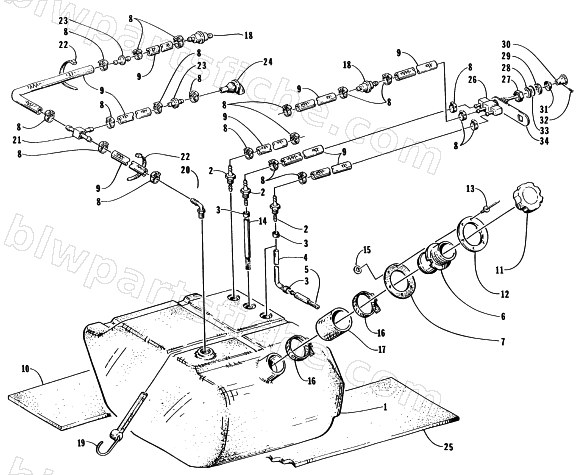

1996 Arctic Cat MONTEGO DELUXE — GAS TANK ASSEMBLY
1996 MONTEGO DELUXE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-175 | GAS TANK ASSY-SER-RESERVE | 1 | $202.59 | |
| 2 | 0670-564 | OUTLET,GAS TANK-BRASS | 1 | $17.87 | |
| 4 | 0610-008 | HOSE, GAS LINE-3/16X25' | 1 | $93.95 | |
| 5 | 0510-358 | STRAINER,GAS TANK | 1 | $6.83 | |
| 6 | 0470-970 | NECK,FILL-REMOTE | 1 | $10.97 | |
| 8 | 0624-120 | CLAMP,HOSE (SNP06) | 1 | $2.19 | |
| 9 | 0610-107 | HOSE, GAS LINE, 25' | 1 | $223.95 | |
| 10 | 0673-306 | PAD,GASTANK-RH | 1 | $10.95 | |
| 13 | 8060-633 | RIVET,BLIND-DH AA614 BLK | 1 | $1.09 | |
| 14 | 1673-055 | TUBE,DROP-MAIN | 1 | $18.29 | |
| 15 | 0623-603 | WASHER,BACKUP-ABUP6 | 1 | $0.43 | |
| 16 | 0624-037 | CLAMP,HOSE-6736-5 (SS) 7/8 -2-3/4 | 1 | $5.29 | |
| 18 | 0470-988 | FILTER,FUEL-INLINE | 1 | $17.87 | |
| 19 | 0773-383 | STRAP ASSY-22 1/4 | 1 | $12.59 | |
| 21 | 0109-332 | T CONN,GAS LINE | 1 | $3.02 | |
| 22 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 25 | 0673-307 | PAD,GASTANK-LH | 1 | $30.95 | |
| 30 | 0673-855 | KNOB, RESERVE FUEL | 1 | $4.39 | |
| 31 | 0687-052 | COVER, BOOT | 1 | $5.78 | |
| 32 | 0624-343 | SCREW,MACH-HSH #6-32 X 5/16 | 1 | $0.46 | |
| 33 | 0623-638 | WASHER,NYLON-.565 .750X.031 | 1 | $1.19 | |
| 34 | 1673-132 | PLATE,BACKING-RESERVE VALVE | 1 | $7.79 |
