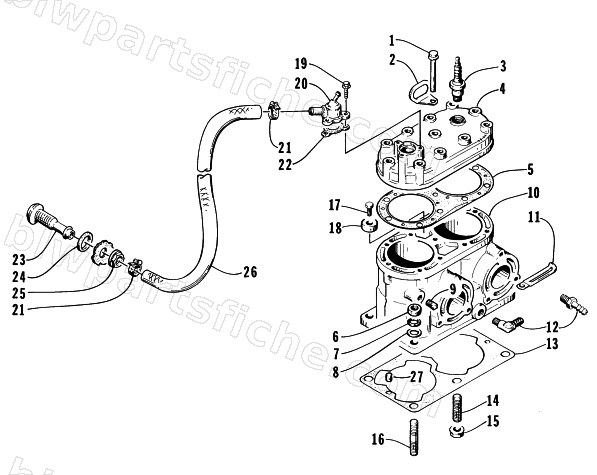

CYLINDER ASSEMBLY
1996 MONTEGO DELUXE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3008-381 | BOLT,8MM | 1 | $6.29 | |
| 2 | 3008-059 | HOOK, ENGINE | 1 | $12.35 | |
| 3 | 0217-700 | SPARK PLUG BR9ES {SOLID} | 1 | $4.54 | |
| 4 | 3008-481 | HEAD, CYLINDER PJ640 | 1 | $833.95 | |
| 5 | 3008-436 | GASKET, HEAD-640CC | 1 | $54.95 | |
| 6 | 3008-209 | NUT,10MM | 1 | $3.16 | |
| 7 | 3008-207 | WASHER, LOCK,10MM | 1 | $3.59 | |
| 8 | 3007-410 | WASHER | 1 | $2.75 | |
| 9 | 3008-377 | PLUG,4MM | 1 | $13.73 | |
| 10 | 3008-326 | CYLINDER (PJ640) | 1 | $2,523.95 | |
| 11 | 3008-358 | CLAMP,M10 | 1 | $3.49 | |
| 12 | 3008-361 | UNION | 1 | $49.29 | |
| 13 | 3008-050 | GASKET, CYLINDER | 1 | $39.95 | |
| 14 | 3008-394 | BOLT, CYLINDER STUD-M10X25 | 1 | $5.29 | |
| 15 | 3008-208 | NUT,10MM | 1 | $4.19 | |
| 17 | 3008-013 | BOLT, 6X14 | 1 | $2.79 | |
| 18 | 3008-047 | ZINC, CYLINDER | 1 | $25.79 | |
| 19 | 3008-216 | BOLT, 6X16 | 1 | $4.49 | |
| 20 | 3008-089 | CAP, THERMOSTAT | 1 | $94.95 | |
| 21 | 0624-016 | CLAMP,HOSE-6708-5 (7/16-1) #8 | 1 | $2.99 | |
| 22 | 3008-230 | GASKET,THERMOSTAT | 1 | $11.95 | |
| 23 | 0673-374 | OUTLET,WATER | 1 | $15.11 | |
| 25 | 0623-753 | NUT,HEX FLANGE-( ) | 1 | $6.29 | |
| 26 | 0610-268 | HOSE,WATER-1/2 HI TEMP 25' 0619-343 | 1 | $97.29 | |
| 27 | 3008-146 | PIN, KNOCK(ALIGNMENT) | 1 | $2.99 |
