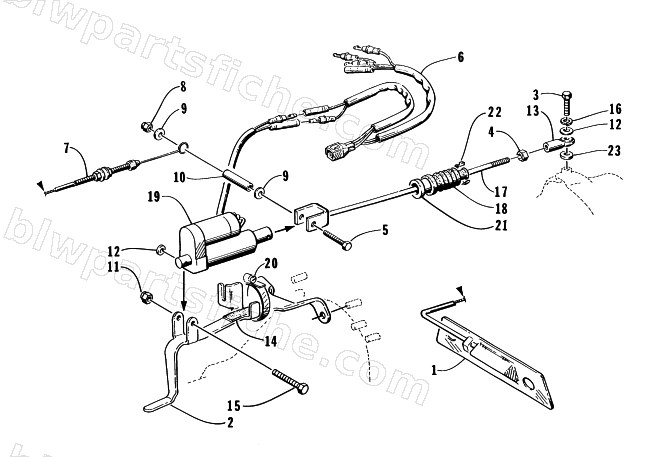

1996 Arctic Cat MONTE CARLO 900 — TRIM ASSEMBLY
1996 MONTE CARLO 900
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0673-938 | PLATE,CONSOLE-TRIM(1673-065) | 1 | $29.29 | |
| 2 | 1673-147 | BRACKET, TRIM MOTOR | 1 | $112.59 | |
| 3 | 0624-289 | SCREW,CAP-HH 1/4-20 X 1 SS | 1 | $0.87 | |
| 4 | 0624-279 | NUT,HEX-1/4-28 (SS) | 1 | $0.67 | |
| 5 | 0624-213 | SCREW,CAP-HH M6-1.0 X 60 (SS) | 1 | $2.79 | |
| 6 | 0686-312 | HARNESS,TRIM W/GROUND REV. | 1 | $86.95 | |
| 7 | 1673-059 | CABLE, TRIM INDICTOR(1673-065) | 1 | $94.95 | |
| 8 | 0624-250 | NUT,LOCK-NSL M6-1.0 SS | 1 | $0.68 | |
| 9 | 0624-022 | WASHER,FLAT-6MM SS | 1 | $0.22 | |
| 10 | 0673-487 | SPACER,TRIM CABLE | 1 | $8.29 | |
| 11 | 0624-089 | NUT,LOCK-HH 1/4 20 (SS) | 1 | $1.39 | |
| 12 | 0624-247 | WASHER,FLAT (SS) .250X.562 | 1 | $0.75 | |
| 13 | 0673-932 | ROD END,STEERING (1/4-28) | 1 | $85.95 | |
| 14 | 1673-197 | PAD,FOAM-.625 | 1 | $0.22 | |
| 15 | 0624-231 | SCREW,CAP-HH 1/4-20 X 1 1/2-SS | 1 | $1.39 | |
| 16 | 0624-115 | WASHER,LOCK-SL .250 SS | 1 | $0.21 | |
| 17 | 0773-708 | ROD,TRIM-WELD'T | 1 | $34.29 | |
| 19 | 0673-711 | ACTUATOR,TRIM 1" W/NO LIMIT SWITCHS | 1 | $644.95 | |
| 20 | 0624-019 | CLAMP,HOSE-MS35842-12 (SS)11/16-2 | 1 | $3.49 | |
| 21 | 1673-196 | FITTING,BELLOWS-LOCK | 1 | $4.49 | |
| 22 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 | |
| 23 | 1673-049 | SPACER,M6-.375X.19 | 1 | $3.99 |
