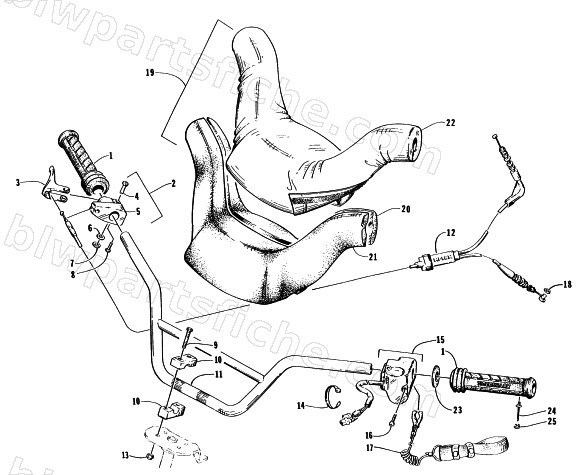

1996 Arctic Cat MONTE CARLO 900 — HANDLEBAR ASSEMBLY
1996 MONTE CARLO 900
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0773-018 | THROTTLE ASSY. (93) | 1 | $59.95 | |
| 4 | 0605-236 | PIN,THROTTLE LEVER PIVOT | 1 | $4.39 | |
| 5 | 0605-235 | HOUSING,THROTTLE | 1 | $37.95 | |
| 7 | 0624-113 | RING,RETAINING (SS) | 1 | $1.39 | |
| 8 | 0624-091 | SCREW,MACH PHPNH 6MM 1.0TX15MM (SS) | 1 | $2.19 | |
| 10 | 0673-282 | CAP,STEERING ADJUSTER | 1 | $20.63 | |
| 11 | 0773-572 | HANDLE BAR WELDMENT | 1 | $176.95 | |
| 12 | 0687-102 | CABLE,THROTTLE-TRIPLE | 1 | $169.95 | |
| 12 | 0687-076 | CABLE,THROTTLE | 1 | $180.79 | |
| 13 | 0624-250 | NUT,LOCK-NSL M6-1.0 SS | 1 | $0.68 | |
| 14 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 15 | 0609-201 | SWITCH,START/STOP/TETHER/BILGE/TRIM | 1 | $518.95 | |
| 15 | 0609-202 | SWITCH,START/STOP/TETHER/BILGE | 1 | $432.95 | |
| 19 | 0773-530 | HANDLE BAR PAD-MFG ASSY-BLUE | 1 | $154.59 | |
| 20 | 0605-253 | PAD,HANDLEBAR-REAR | 1 | $37.95 | |
| 21 | 0605-244 | PAD,HANDLEBAR-FRONT | 1 | $47.79 | |
| 24 | 8060-230 | RIVET,BLIND-DH AA48 BLK | 1 | $0.15 | |
| 25 | 1673-111 | PLUG,MUSHROOM-DOMED-BLK | 1 | $0.46 |
