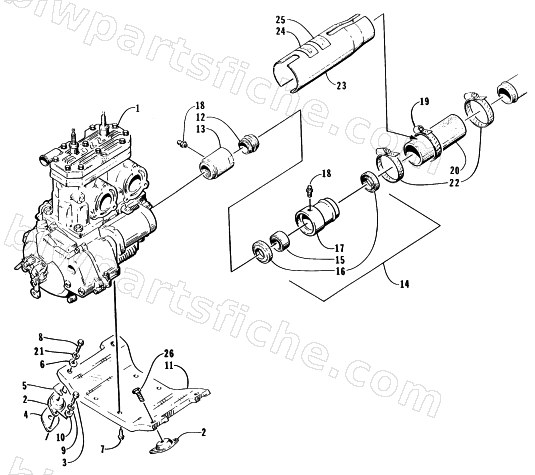

1996 Arctic Cat MONTE CARLO 900 — ENGINE AND RELATED ASSEMBLY
1996 MONTE CARLO 900
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0662-173 | ENGINE,900 L/C TSK P5 | 1 | $10,055.95 | |
| 1 | 0662-176 | ENGINE,770 L/C-ASD-TSK | 1 | $7,604.29 | |
| 2 | 0675-117 | COUPLER,DRIVE-S-24-W/O INTEGRAL SPACER | 1 | $204.95 | |
| 3 | 0624-158 | SCREW,CAP HH 8MM 1.25T 30MM (SS) | 1 | $1.99 | |
| 4 | 0624-028 | WASHER,FLAT-8MM SS | 1 | $0.40 | |
| 4 | 0673-509 | SHIM,ENG MNT-.063 | 1 | $3.19 | |
| 5 | 0624-390 | CLAMP,HOSE- (262) 1.75/2..625 | 1 | $17.87 | |
| 7 | 0608-156 | PLATE,MTG-ENGINE | 1 | $498.29 | |
| 7 | 3008-203 | BOLT, ENGINE PLATE-M10X30 | 1 | $4.95 | |
| 8 | 0624-282 | WASHER,FLAT-1/2 (.531 X 1.250 X .100) SS | 1 | $2.19 | |
| 8 | 0624-275 | SCREW,CAP-HH-M10 X 40 (SS) | 1 | $3.09 | |
| 9 | 0624-281 | WASHER,LOCK-1/2 (SS) | 1 | $1.19 | |
| 9 | 0624-027 | WASHER,LOCK-SL 8MM SS | 1 | $0.44 | |
| 10 | 0624-322 | SCREW,CAP-HH-1/2-13 X 2 1/4 | 1 | $6.95 | |
| 11 | 0624-238 | SCREW,CAP-HH M10 X 1.25P X 45 (SS) | 1 | $25.29 | |
| 11 | 0775-050 | PLATE,MOUNT-MOTOR | 1 | $264.95 | |
| 12 | 3008-021 | WASHER, LOCK,10MM | 1 | $2.79 | |
| 13 | 3008-016 | WASHER, 10.5X30X3.2 | 1 | $3.85 | |
| 14 | 0624-014 | SHIM-.5MM/26 GA. SS | 1 | $2.29 | |
| 14 | 0624-015 | SHIM-1.5MM/16 GA. SS | 1 | $2.69 | |
| 16 | 0673-508 | SHIM,ENG MTG-.125 | 1 | $6.29 | |
| 17 | 0624-090 | NUT,LOCK-HH M8-1.25 (SS) | 1 | $1.89 | |
| 21 | 0675-099 | HOUSING,BEARING-FLOATING | 1 | $73.95 | |
| 21 | 0624-021 | NUT,LOCK-HEX6MM 1.0T SS | 1 | $0.78 | |
| 24 | 1611-608 | DECAL,NOTICE-SHAFT GUARD | 1 | $9.79 | |
| 25 | 0614-244 | DECAL,COUPLER-SERVICING | 1 | $20.79 | |
| 26 | 0624-037 | CLAMP,HOSE-6736-5 (SS) 7/8 -2-3/4 | 1 | $5.29 | |
| 26 | 0624-206 | SCREW,CAP-HH-M10 X 50 (SS) | 1 | $5.79 |
