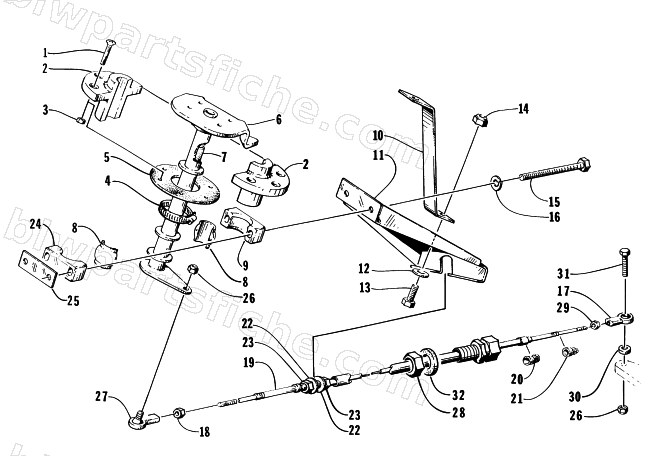

STEERING POST ASSEMBLY
1996 MONTE CARLO 640
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0624-186 | SCREW,MACH-TSFH 6MM-1.0 X 35MM (SS) | 1 | $2.19 | |
| 2 | 0673-122 | BEARING,STEERINGPOST-HALF 93 | 1 | $51.95 | |
| 3 | 0624-021 | NUT,LOCK-HEX6MM 1.0T SS | 1 | $0.78 | |
| 4 | 0624-038 | CLAMP,HOSE-6728-5 (1 5/16-2 1/4) #28 | 1 | $4.49 | |
| 5 | 0673-056 | SEAL,BEARING-STEERINGPOST | 1 | $14.59 | |
| 6 | 0773-096 | POST,STEERING-WELD'T | 1 | $244.95 | |
| 7 | 0717-052 | FOAM, NEOPRENE TAPE-10' ROLL | 1 | $8.21 | |
| 8 | 0605-149 | BEARING,STEERING POST | 1 | $3.02 | |
| 9 | 0605-171 | CAP, BEARING - STEERING POST | 1 | $19.95 | |
| 10 | 0673-457 | BRACKET,SUPPORT-CABLE MOUNT | 1 | $4.99 | |
| 11 | 0773-629 | STEERING CABLE BRKT WELD'T | 1 | $63.95 | |
| 12 | 0624-125 | WASHER FLAT,FENDER 8MM (SS) | 1 | $1.69 | |
| 13 | 0624-229 | SCREW,CAP-M8 X 16 (SS) DIN933 | 1 | $4.49 | |
| 14 | 0624-090 | NUT,LOCK-HH M8-1.25 (SS) | 1 | $1.89 | |
| 15 | 0624-192 | SCREW,CAP-HH 8MM-1.25P X 70MM (SS) | 1 | $4.49 | |
| 17 | 0673-932 | ROD END,STEERING (1/4-28) | 1 | $85.95 | |
| 18 | 0624-107 | NUT,HEX-10-32 (SS) | 1 | $0.39 | |
| 19 | 0673-856 | CABLE,STEERING | 1 | $247.59 | |
| 21 | 0612-364 | COVER,THREAD CAP-STEERING CABLE | 1 | $2.69 | |
| 22 | 0624-106 | WASHER,FLAT 7/16 (SS) | 1 | $2.09 | |
| 23 | 0624-105 | NUT,JAM 7/16 (SS) | 1 | $1.19 | |
| 24 | 0705-064 | HSNG,BEARING-UPPER-PTD BLK | 1 | $19.25 | |
| 25 | 0673-366 | SPACER,BEARING HOUSING | 1 | $1.69 | |
| 26 | 0624-089 | NUT,LOCK-HH 1/4 20 (SS) | 1 | $1.39 | |
| 27 | 0673-028 | END, STEERING CABLE | 1 | $47.95 | |
| 28 | 0623-669 | NUT,STEERING CABLE-NYLON | 1 | $2.95 | |
| 29 | 0624-279 | NUT,HEX-1/4-28 (SS) | 1 | $0.67 | |
| 32 | 1673-193 | GASKET,CABLE-FOAM | 1 | $3.49 |
