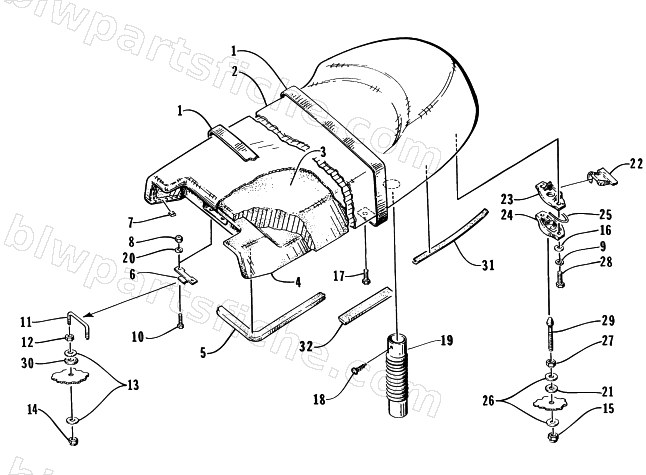

SEAT ASSEMBLY
1996 MONTE CARLO 640
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0773-647 | SEAT-ASSY-RED 96MCA/B/C SP | 1 | $1,143.95 | |
| 4 | 0773-521 | SEAT BASE MFG ASSY | 1 | $160.59 | |
| 5 | 0773-623 | SEAL,SEAT BASE-25' | 1 | $172.59 | |
| 8 | 0624-021 | NUT,LOCK-HEX6MM 1.0T SS | 1 | $0.78 | |
| 10 | 0624-112 | SCREW,CAP HH6MM 1.0TX25MM | 1 | $0.65 | |
| 12 | 0624-061 | NUT,JAM 8MM 1.25T (SS) | 1 | $1.19 | |
| 13 | 0624-125 | WASHER FLAT,FENDER 8MM (SS) | 1 | $1.69 | |
| 14 | 0624-090 | NUT,LOCK-HH M8-1.25 (SS) | 1 | $1.89 | |
| 16 | 0624-022 | WASHER,FLAT-6MM SS | 1 | $0.22 | |
| 20 | 0624-182 | WASHER,FLAT-6.4MM ID X 18MM OD X 1.6T (S | 1 | $0.52 | |
| 21 | 0623-391 | WASHER,RUBBER 10MM ID | 1 | $5.79 | |
| 22 | 0673-026 | LEVER,RELEASE-SEATLATCH | 1 | $8.59 | |
| 23 | 0773-941 | HOUSING,LATCH-UPPER/LOWER (1673-634/635) | 1 | $9.95 | |
| 25 | 0673-023 | CLIP,SPRING RETAINING-SS | 1 | $39.95 | |
| 26 | 0624-159 | WASHER,FLAT-FENDER 10MM 1 3/8 OD (SS) | 1 | $2.99 | |
| 27 | 0624-047 | NUT,HEX JAM-10MM SS | 1 | $2.59 | |
| 28 | 0624-289 | SCREW,CAP-HH 1/4-20 X 1 SS | 1 | $0.87 | |
| 29 | 0673-930 | STUD,LATCH-SEAT | 1 | $16.79 | |
| 30 | 0624-126 | WASHER FLAT,RUBBER 8MM | 1 | $12.59 | |
| 31 | 0706-371 | TRIM,RACK-36 | 1 | $20.63 | |
| 32 | 0617-195 | FOAM,PAD-SEAT STRAP (1 FOOT) | 1 | $13.95 |
