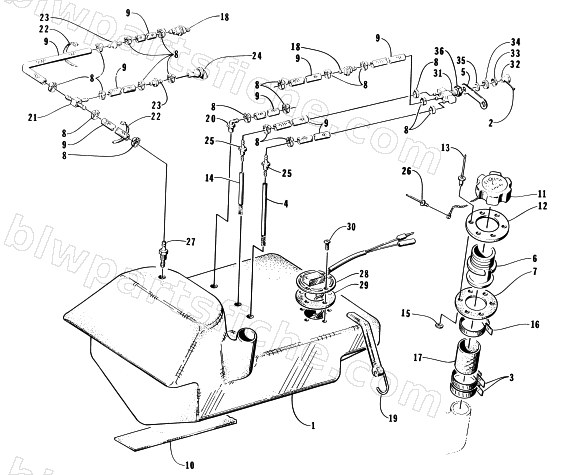

1996 Arctic Cat DAYTONA 770 — GAS TANK ASSEMBLY
1996 DAYTONA 770
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-184 | TANK,GAS-ASSY SP 96DTB | 1 | $319.95 | |
| 2 | 0624-343 | SCREW,MACH-HSH #6-32 X 5/16 | 1 | $0.46 | |
| 3 | 0624-037 | CLAMP,HOSE-6736-5 (SS) 7/8 -2-3/4 | 1 | $5.29 | |
| 4 | 0670-607 | TUBE,DROP | 1 | $5.95 | |
| 5 | 0510-358 | STRAINER,GAS TANK | 1 | $6.83 | |
| 6 | 0470-970 | NECK,FILL-REMOTE | 1 | $10.97 | |
| 8 | 0624-120 | CLAMP,HOSE (SNP06) | 1 | $2.19 | |
| 9 | 0610-107 | HOSE, GAS LINE, 25' | 1 | $223.95 | |
| 10 | 0673-307 | PAD,GASTANK-LH | 1 | $30.95 | |
| 13 | 8060-633 | RIVET,BLIND-DH AA614 BLK | 1 | $1.09 | |
| 14 | 0670-606 | TUBE,DROP-MAIN | 1 | $8.59 | |
| 15 | 0623-603 | WASHER,BACKUP-ABUP6 | 1 | $0.43 | |
| 16 | 0624-390 | CLAMP,HOSE- (262) 1.75/2..625 | 1 | $17.87 | |
| 18 | 0470-988 | FILTER,FUEL-INLINE | 1 | $17.87 | |
| 19 | 0773-383 | STRAP ASSY-22 1/4 | 1 | $12.59 | |
| 21 | 0109-332 | T CONN,GAS LINE | 1 | $3.02 | |
| 22 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 26 | 0624-074 | RIVET AD44AH | 1 | $0.65 | |
| 27 | 0670-564 | OUTLET,GAS TANK-BRASS | 1 | $17.87 | |
| 28 | 0620-178 | SENSOR, FUEL LEVEL '96DAYT | 1 | $123.29 | |
| 29 | 0670-474 | GASKET,FUEL SENSOR-PWC | 1 | $19.95 | |
| 30 | 0624-312 | SCREW,MACH-HWH 10-32X.475 (SS) | 1 | $4.95 | |
| 32 | 0673-855 | KNOB, RESERVE FUEL | 1 | $4.39 | |
| 33 | 1673-066 | SEAL,CONTROL STEM | 1 | $1.79 |
