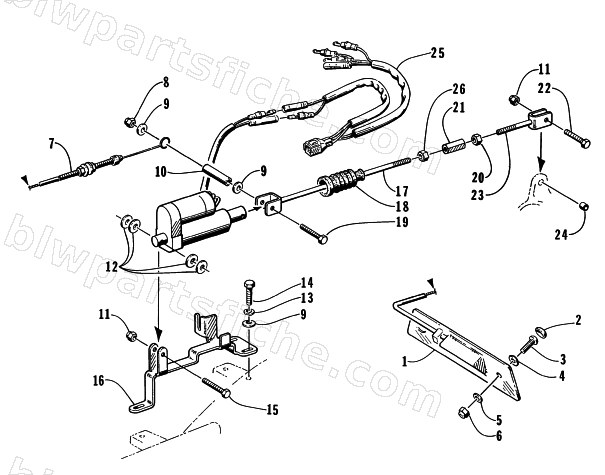

1995 Arctic Cat TIGERSHARK 900 — TRIM ASSEMBLY
1995 TIGERSHARK 900
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0673-842 | PLATE,CONSOLE-TRIM INDICATOR-REF673672 | 1 | $24.59 | |
| 2 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 3 | 0624-095 | SCREW,MACH PHPNH 5MM .8TX20MM (SS) | 1 | $0.60 | |
| 4 | 0124-065 | WASHER,SNAP CAP | 1 | $0.40 | |
| 5 | 0624-004 | WASHER,FLAT-M5 (SS) | 1 | $0.44 | |
| 6 | 0624-005 | NUT,LOCK-M5-.8 (SS) | 1 | $1.19 | |
| 7 | 0673-841 | CABLE,TRIM INDICATOR-REF_0673-672 | 1 | $44.59 | |
| 8 | 0624-250 | NUT,LOCK-NSL M6-1.0 SS | 1 | $0.68 | |
| 9 | 0624-022 | WASHER,FLAT-6MM SS | 1 | $0.22 | |
| 10 | 0673-487 | SPACER,TRIM CABLE | 1 | $8.29 | |
| 11 | 0624-089 | NUT,LOCK-HH 1/4 20 (SS) | 1 | $1.39 | |
| 12 | 0624-247 | WASHER,FLAT (SS) .250X.562 | 1 | $0.75 | |
| 14 | 0624-046 | SCREW,CAP-HH 6MM-1.0X16MM SS | 1 | $1.19 | |
| 15 | 0624-231 | SCREW,CAP-HH 1/4-20 X 1 1/2-SS | 1 | $1.39 | |
| 16 | 0673-810 | MOUNT,TRIM MOTOR | 1 | $82.95 | |
| 17 | 0773-364 | TRIM ROD-WELDMENT-LONG | 1 | $54.95 | |
| 19 | 0624-213 | SCREW,CAP-HH M6-1.0 X 60 (SS) | 1 | $2.79 | |
| 20 | 0624-297 | NUT,HEX-1/4-28 LH (SS) | 1 | $4.69 | |
| 21 | 0673-715 | TURNBUCKLE-1/4-28 (SS) | 1 | $13.95 | |
| 22 | 0624-289 | SCREW,CAP-HH 1/4-20 X 1 SS | 1 | $0.87 | |
| 23 | 0773-363 | TRIM ROD-WELDMENT-SHORT | 1 | $46.95 | |
| 25 | 0686-312 | HARNESS,TRIM W/GROUND REV. | 1 | $86.95 | |
| 26 | 0624-279 | NUT,HEX-1/4-28 (SS) | 1 | $0.67 |
