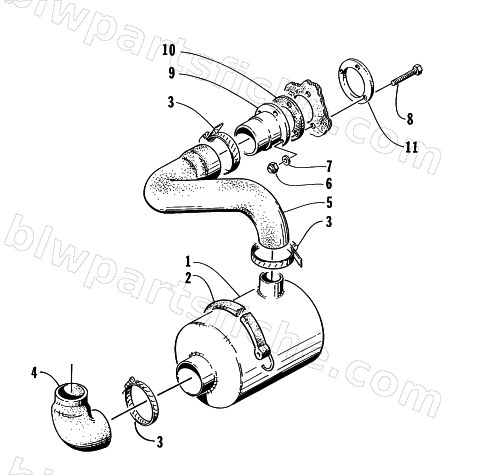

1995 Arctic Cat TIGERSHARK 900 — MUFFLER ASSEMBLY
1995 TIGERSHARK 900
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0712-148 | MUFFLER- WELDT | 1 | $249.79 | |
| 2 | 0773-382 | STRAP ASSY-8 5/8 | 1 | $54.29 | |
| 3 | 0624-169 | CLAMP,HOSE {3 1/2"} MS35842-14 | 1 | $4.59 | |
| 5 | 0610-225 | HOSE,EXHAUST (OUT) | 1 | $105.95 | |
| 6 | 0624-005 | NUT,LOCK-M5-.8 (SS) | 1 | $1.19 | |
| 7 | 0624-182 | WASHER,FLAT-6.4MM ID X 18MM OD X 1.6T (S | 1 | $0.52 | |
| 8 | 0624-102 | SCREW,CAP HH 5MM .8TX25MM(SS) | 1 | $1.19 | |
| 9 | 0673-830 | OUTLET,EXHAUST | 1 | $84.95 | |
| 10 | 0612-391 | SEAL, EXHAUST OUTLET | 1 | $21.95 | |
| 11 | 0673-451 | RING,BOLT-EXHAUST DEFLECTOR | 1 | $24.77 |
