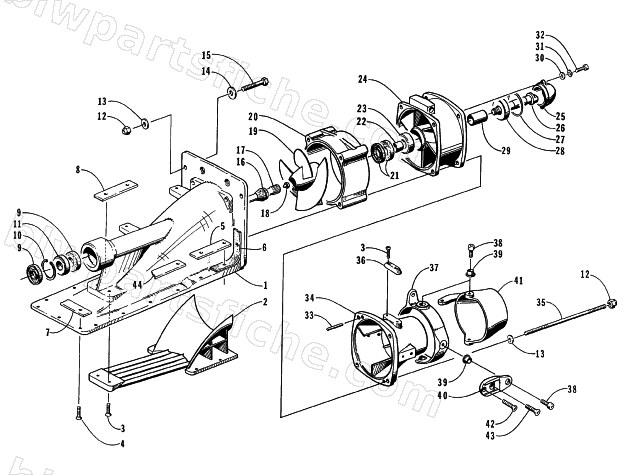

1995 Arctic Cat TIGERSHARK 900 — IMPELLER DRIVE ASSEMBLY
1995 TIGERSHARK 900
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0673-532 | INLET,PUMP | 1 | $773.59 | |
| 2 | 0673-533 | GRATE,INLET-SHORT | 1 | $227.59 | |
| 4 | 0624-186 | SCREW,MACH-TSFH 6MM-1.0 X 35MM (SS) | 1 | $2.19 | |
| 6 | 0612-515 | SEAL,PUMP INLET BASE | 1 | $37.95 | |
| 8 | 0773-482 | PLATE,BACKING-PUMP | 1 | $6.95 | |
| 9 | 0673-031 | SEAL,FRONT-PUMP 22X50X10 | 1 | $23.59 | |
| 10 | 0624-043 | SNAPRING-FRONT PUMP-SS(N1300-193) | 1 | $29.95 | |
| 11 | 0673-030 | BEARING,FRONT-PUMP {62/22RKB} | 1 | $52.95 | |
| 13 | 0624-008 | WASHER,FLAT-10MM SS | 1 | $0.69 | |
| 14 | 0624-264 | WASHER,SEALING-M10 X 25.1 (SS) 18-8 | 1 | $1.19 | |
| 15 | 0624-007 | SCREW,CAP-HH 10MM 1.5TX35MM SS | 1 | $4.59 | |
| 17 | 0673-849 | DRIVESHAFT | 1 | $350.79 | |
| 18 | 0673-618 | BUMPER,DRIVESHAFT | 1 | $3.57 | |
| 19 | 0673-779 | IMPELLER-15.5-20 | 1 | $751.95 | |
| 20 | 0673-535 | WEAR RING W/SS SLEEVE | 1 | $534.95 | |
| 21 | 0673-902 | SEAL-26X47X10-DC-SSS-T703 | 1 | $12.29 | |
| 22 | 1673-215 | SPACER,SMALL-HARD SURFACE | 1 | $60.95 | |
| 25 | 1673-213 | ENDCAP,STATOR-IMPREG | 1 | $142.95 | |
| 26 | 0673-614 | SHAFT,REAR | 1 | $165.95 | |
| 27 | 0673-824 | O-RING,1 15/16 X 3/32 (-135) | 1 | $0.92 | |
| 28 | 0673-610 | BEARING,REAR-STATOR {6304} | 1 | $54.29 | |
| 29 | 0673-611 | SPACER,BEARING TO BEARING | 1 | $72.95 | |
| 30 | 0624-022 | WASHER,FLAT-6MM SS | 1 | $0.22 | |
| 33 | 0673-655 | PIN,DOWEL-1/4 X 1/2 LG | 1 | $2.09 | |
| 34 | 0673-839 | VENTURI | 1 | $638.95 | |
| 35 | 0624-300 | STUD,PUMP-10MM | 1 | $38.59 | |
| 36 | 0624-084 | ZINC ANODES | 1 | $28.59 | |
| 37 | 0673-732 | TRIM RING | 1 | $133.95 | |
| 38 | 0624-174 | SCREW,CAP-HSH 8MM 1.25P X 10MM-SS | 1 | $2.59 | |
| 39 | 0673-291 | BUSHING,TRIM RING (ARDEN 212NN-0203) | 1 | $3.99 | |
| 40 | 0673-786 | BRACKET,TRIM RING | 1 | $61.95 | |
| 41 | 0673-538 | NOZZLE STEERING | 1 | $137.29 | |
| 42 | 0624-272 | SCREW,MACH-TSFH M6 X 16 (SS) | 1 | $2.79 | |
| 44 | 0673-690 | PLATE,BACKING-PUMP [12.30"] | 1 | $13.29 |
