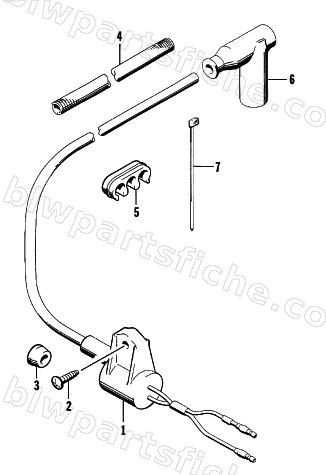

1995 Arctic Cat TIGERSHARK 900 — IGNITION COIL
1995 TIGERSHARK 900
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3008-523 | COIL ASSY, IGNITION | 1 | $223.95 | |
| 2 | 3008-321 | SCREW,6X20 | 1 | $2.59 | |
| 4 | 3008-129 | PROTECTOR, HIGH TENSION CORD | 1 | $10.97 | |
| 5 | 3008-252 | CLAMP | 1 | $5.59 | |
| 6 | 3006-367 | CAP, SPARK PLUG-NGK TB05EMD | 1 | $24.77 | |
| 7 | 3003-787 | CABLE TIE | 1 | $4.95 |
