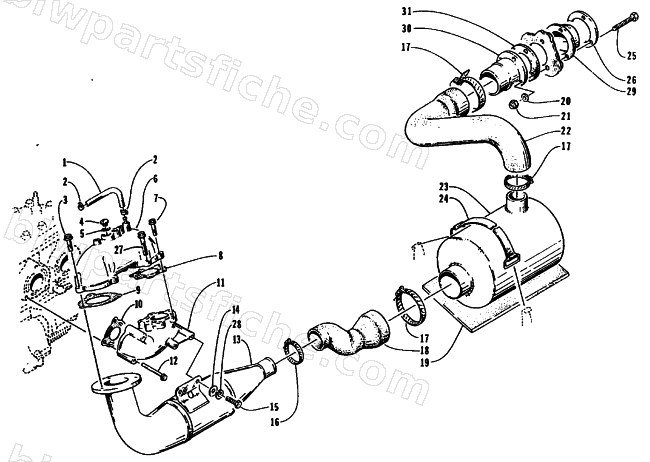

1994 Arctic Cat MONTEGO DELUXE — EXHAUST ASSEMBLY
1994 MONTEGO DELUXE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3008-355 | HOSE,M2-3X10X600 | 1 | $66.59 | |
| 2 | 3008-039 | CLIP, ID:10.5 | 1 | $3.49 | |
| 3 | 3008-215 | BOLT, 8X25 | 1 | $3.49 | |
| 4 | 3008-025 | PLUG,M10X7.5 | 1 | $11.29 | |
| 5 | 3008-022 | GASKET, M10X17X1.5 | 1 | $2.69 | |
| 6 | 3008-171 | PIPE ASS'Y, EXHAUST | 1 | $1,112.95 | |
| 8 | 3008-385 | GASKET,EXHAUST PIPE | 1 | $39.95 | |
| 9 | 3008-386 | GASKET,EXHAUST JOINT | 1 | $59.95 | |
| 10 | 3008-384 | GASKET,EXHAUST MANIFOLD | 1 | $29.95 | |
| 11 | 3008-204 | MANIFOLD, EXHAUST | 1 | $830.59 | |
| 13 | 3008-485 | MUFFLER, 1ST | 1 | $1,617.95 | |
| 14 | 3008-189 | WASHER,10MM | 1 | $3.49 | |
| 15 | 3008-188 | BOLT,10MM | 1 | $12.95 | |
| 16 | 0624-038 | CLAMP,HOSE-6728-5 (1 5/16-2 1/4) #28 | 1 | $4.49 | |
| 17 | 0624-018 | CLAMP,HOSE-6712-5 (1/2-1 1/4) #12 | 1 | $3.29 | |
| 18 | 0610-144 | HOSE,EXHAUST (IN) | 1 | $43.59 | |
| 20 | 0624-004 | WASHER,FLAT-M5 (SS) | 1 | $0.44 | |
| 21 | 0624-005 | NUT,LOCK-M5-.8 (SS) | 1 | $1.19 | |
| 22 | 0610-145 | HOSE,EXHAUST (OUT) | 1 | $159.95 | |
| 23 | 0712-128 | MUFFLER- WELDT | 1 | $525.95 | |
| 24 | 0673-392 | TIEDOWN,RUBBER-13 | 1 | $17.87 | |
| 25 | 0624-102 | SCREW,CAP HH 5MM .8TX25MM(SS) | 1 | $1.19 | |
| 26 | 0673-451 | RING,BOLT-EXHAUST DEFLECTOR | 1 | $24.77 | |
| 28 | 3008-021 | WASHER, LOCK,10MM | 1 | $2.79 | |
| 29 | 0673-436 | DEFLECTOR,EXHAUST | 1 | $51.95 | |
| 30 | 0673-135 | OUTLET,EXHAUST | 1 | $92.95 |
