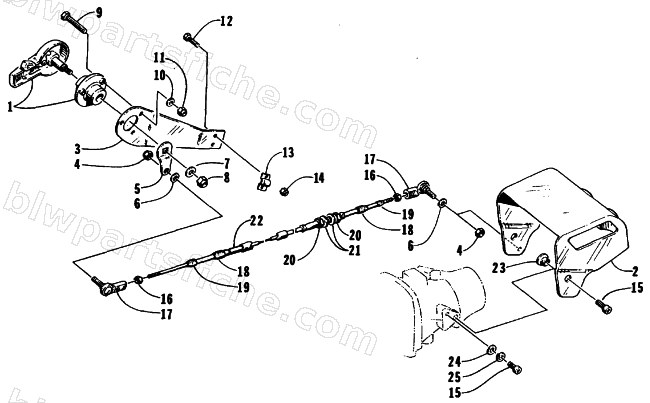

1994 Arctic Cat MONTE CARLO — REVERSE BUCKET AND LEVER ASSEMBLY
1994 MONTE CARLO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0673-503 | LEVER,REVERSE | 1 | $221.95 | |
| 2 | 0773-106 | DEFLECTOR,REVERSE-WELDMENT | 1 | $212.59 | |
| 3 | 0673-530 | MOUNT,REVERSE LEVER | 1 | $38.29 | |
| 4 | 0624-114 | NUT,LOCK-1/4-28 | 1 | $2.19 | |
| 5 | 0673-531 | ARM,REVERSE LEVER | 1 | $8.59 | |
| 6 | 0624-115 | WASHER,LOCK-SL .250 SS | 1 | $0.21 | |
| 7 | 0624-008 | WASHER,FLAT-10MM SS | 1 | $0.69 | |
| 8 | 0624-427 | NUT,HEX-M10X1.25 W/LOCKPATCH | 1 | $4.29 | |
| 10 | 0624-022 | WASHER,FLAT-6MM SS | 1 | $0.22 | |
| 11 | 0624-021 | NUT,LOCK-HEX6MM 1.0T SS | 1 | $0.78 | |
| 12 | 0624-155 | SCREW,CAP-HH M5-.8X16 SS | 1 | $0.87 | |
| 13 | 0673-556 | CLAMP,REVERSE CABLE | 1 | $3.89 | |
| 14 | 0624-005 | NUT,LOCK-M5-.8 (SS) | 1 | $1.19 | |
| 15 | 0624-175 | SCREW,CAP-HSH 8MM 1.25P X 16MM-SS | 1 | $2.09 | |
| 16 | 0624-107 | NUT,HEX-10-32 (SS) | 1 | $0.39 | |
| 17 | 0673-028 | END, STEERING CABLE | 1 | $47.95 | |
| 19 | 0612-364 | COVER,THREAD CAP-STEERING CABLE | 1 | $2.69 | |
| 20 | 0624-105 | NUT,JAM 7/16 (SS) | 1 | $1.19 | |
| 21 | 0624-106 | WASHER,FLAT 7/16 (SS) | 1 | $2.09 | |
| 22 | 0673-223 | CABLE,REVERSE | 1 | $140.29 | |
| 23 | 0673-291 | BUSHING,TRIM RING (ARDEN 212NN-0203) | 1 | $3.99 | |
| 24 | 0624-028 | WASHER,FLAT-8MM SS | 1 | $0.40 | |
| 25 | 0624-027 | WASHER,LOCK-SL 8MM SS | 1 | $0.44 |
