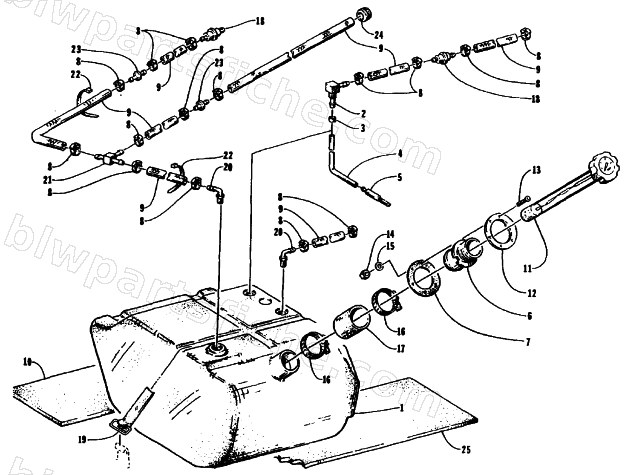

GAS TANK ASSEMBLY
1994 MONTE CARLO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 5 | 0510-358 | STRAINER,GAS TANK | 1 | $6.83 | |
| 6 | 0470-970 | NECK,FILL-REMOTE | 1 | $10.97 | |
| 8 | 0624-120 | CLAMP,HOSE (SNP06) | 1 | $2.19 | |
| 9 | 0610-107 | HOSE, GAS LINE, 25' | 1 | $223.95 | |
| 10 | 0673-306 | PAD,GASTANK-RH | 1 | $10.95 | |
| 13 | 0624-031 | SCREW,MACH. PHFH 5MM.8TX20MM (SS) | 1 | $1.39 | |
| 14 | 0624-005 | NUT,LOCK-M5-.8 (SS) | 1 | $1.19 | |
| 15 | 0624-004 | WASHER,FLAT-M5 (SS) | 1 | $0.44 | |
| 16 | 0624-037 | CLAMP,HOSE-6736-5 (SS) 7/8 -2-3/4 | 1 | $5.29 | |
| 17 | 0710-109 | HOSE,FILL-2 ID X 12 (GAS/OIL) | 1 | $36.79 | |
| 18 | 0470-988 | FILTER,FUEL-INLINE | 1 | $17.87 | |
| 19 | 0673-390 | TIEDOWN,RUBBER-23 | 1 | $17.95 | |
| 21 | 0109-332 | T CONN,GAS LINE | 1 | $3.02 | |
| 22 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 24 | 0624-492 | WASHER,LOCK-1/4 STAR(EXTERNAL)1614 | 1 | $0.33 | |
| 25 | 0673-307 | PAD,GASTANK-LH | 1 | $30.95 |
