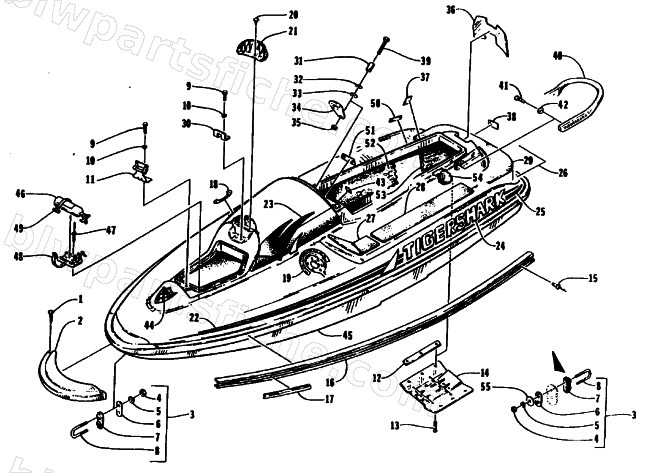

1994 Arctic Cat DAYTONA — HULL AND DECK ASSEMBLY
1994 DAYTONA
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0623-453 | CLIP,CHRISTMAS TREE (ARDEN 08-81291) | 1 | $1.79 | |
| 3 | 0624-002 | EYEHOOK-ASSY.1 1/2 | 1 | $61.29 | |
| 4 | 0624-149 | NUT, HEX 8MM-1.25 SS | 1 | $3.09 | |
| 5 | 0624-027 | WASHER,LOCK-SL 8MM SS | 1 | $0.44 | |
| 6 | 0624-150 | PLATE, SUPPORT-EYEHOOK | 1 | $18.29 | |
| 7 | 0624-165 | GASKET, RUBBER-EYE HOOK (1-1/2 ) | 1 | $10.59 | |
| 9 | 0624-092 | SCREW,CAP HH 5MM .8TX20MM (SS) | 1 | $1.29 | |
| 10 | 0624-200 | WASHER,LOCK-M5 (SS) | 1 | $0.71 | |
| 11 | 0673-781 | HINGE,HOOD-ASSY | 1 | $33.59 | |
| 12 | 0673-006 | PLATE,NUT 8.10 (SS) | 1 | $26.59 | |
| 13 | 0624-184 | SCREW,MACH-TSFH 6MM-1.0 X 25MM (SS) | 1 | $2.19 | |
| 14 | 0673-413 | RIDE PLATE-CAST | 1 | $195.95 | |
| 15 | 0624-030 | RIVET,SS/SS610LF | 1 | $2.19 | |
| 16 | 0673-147 | TRIM,249" EDGE-SIDE-CTL {BLK} | 1 | $178.29 | |
| 17 | 0673-168 | INSERT,TRIM-PURPLE-249" | 1 | $123.95 | |
| 20 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 22 | 0614-044 | DECAL,DECK-FRONT-RH | 1 | $27.59 | |
| 23 | 0614-045 | DECAL,DECK-FRONT-LH | 1 | $30.95 | |
| 23 | 0614-042 | DECAL,HOOD SIDE-RH | 1 | $27.59 | |
| 24 | 1611-920 | DECAL,DECK TIGERSHARK (RED) | 1 | $24.79 | |
| 25 | 0614-046 | DECAL,DECK-REAR-RH | 1 | $3.59 | |
| 25 | 0614-047 | DECAL,DECK-REAR-LH | 1 | $3.49 | |
| 27 | 0673-336 | PAD,FOOT-FRONT RH | 1 | $22.79 | |
| 27 | 0673-337 | PAD,FOOT-FRONT LH | 1 | $27.79 | |
| 28 | 0673-228 | PAD,FOOT-RH | 1 | $57.59 | |
| 29 | 0673-227 | PAD,FOOT REAR | 1 | $73.59 | |
| 30 | 0673-297 | CATCH,LATCH | 1 | $5.29 | |
| 31 | 0673-485 | STOP,STEERING POST | 1 | $6.29 | |
| 32 | 0624-008 | WASHER,FLAT-10MM SS | 1 | $0.69 | |
| 33 | 0623-391 | WASHER,RUBBER 10MM ID | 1 | $5.79 | |
| 34 | 0673-417 | PLATE,BACKING-STEERING POST | 1 | $15.79 | |
| 37 | 0614-066 | DECAL,USCG EXEMPTION | 1 | $4.59 | |
| 39 | 0624-223 | SCREW,CAP-M10 X 60 (SS) DIN 931 | 1 | $5.59 | |
| 40 | 0773-423 | GRAB HANDLE ASSY-KIT | 1 | $63.59 | |
| 42 | 0624-228 | WASHER,FLAT-.281X.625X.037 (SS) | 1 | $0.68 | |
| 43 | 1611-866 | DECAL,WARNING-GAS VAPORS | 1 | $4.69 | |
| 44 | 0614-039 | DECAL,DECK-TSK CREST | 1 | $12.59 | |
| 45 | 0773-202 | HULL/DECK ASSY (94 DAYTONA) | 1 | $4,314.59 | |
| 46 | 0678-534 | EXTINGUISHER, FIRE - PWC | 1 | $23.95 | |
| 49 | 0673-128 | TIEDOWN,RUBBER-5.50 | 1 | $10.97 | |
| 50 | 0614-059 | DECAL, COMMON SENSE | 1 | $11.29 | |
| 51 | 0614-068 | DECAL,CHOKE | 1 | $4.79 | |
| 52 | 0614-183 | DECAL,DECK-SIDE "TIGERSHARK" | 1 | $77.29 | |
| 53 | 0614-181 | DECAL,SIDE-LH | 1 | $30.29 | |
| 55 | 0624-013 | WASHER,FLAT.42X.93X.075 SS | 1 | $1.79 |
