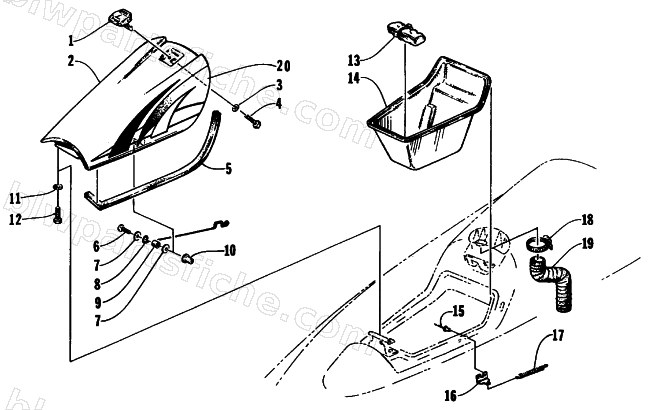

1994 Arctic Cat DAYTONA — HATCH COVER AND STORAGE TRAY
1994 DAYTONA
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0673-177 | LATCH,STORAGE COMPARTMENT | 1 | $49.95 | |
| 2 | 0673-452 | HATCH COVER ASSY-LARGE | 1 | $453.95 | |
| 3 | 0624-004 | WASHER,FLAT-M5 (SS) | 1 | $0.44 | |
| 4 | 0624-092 | SCREW,CAP HH 5MM .8TX20MM (SS) | 1 | $1.29 | |
| 5 | 0673-241 | SEAL,STORAGE TRAY | 1 | $56.95 | |
| 7 | 0624-182 | WASHER,FLAT-6.4MM ID X 18MM OD X 1.6T (S | 1 | $0.52 | |
| 8 | 0773-220 | WELDMENT-HOOD PROP ROD | 1 | $12.59 | |
| 10 | 0624-082 | WELLNUT 6MM(347-256) | 1 | $3.99 | |
| 12 | 0624-046 | SCREW,CAP-HH 6MM-1.0X16MM SS | 1 | $1.19 | |
| 14 | 0673-250 | TRAY STORAGE | 1 | $77.95 | |
| 15 | 0624-069 | RIVET,SS/SS56D | 1 | $0.35 | |
| 16 | 0673-397 | BRACKET,SPRING ROD | 1 | $10.59 | |
| 17 | 0673-400 | SPRING,HOOD PROP | 1 | $5.95 | |
| 20 | 0614-041 | DECAL,HOOD SIDE-FRONT-LH | 1 | $27.29 | |
| 20 | 0614-040 | DECAL,HOOD SIDE-FRONT-RH | 1 | $27.29 |
