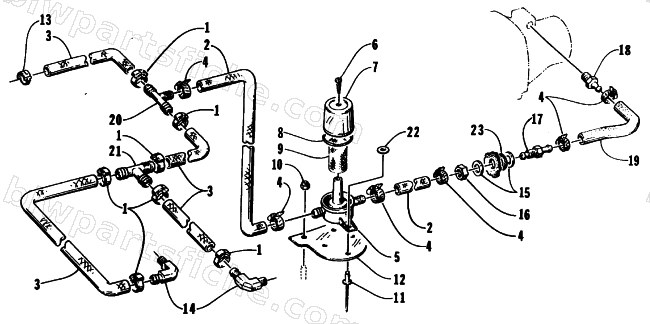

1994 Arctic Cat BARRACUDA — WATER FILTER ASSEMBLY
1994 BARRACUDA
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3008-365 | HOSE,70MM | 1 | $1.89 | |
| 2 | 0610-106 | HOSE, WATER LINE, .5" X 25' | 1 | $90.95 | |
| 3 | 0610-183 | HOSE,3/8 WATERLINE-25' | 1 | $66.29 | |
| 4 | 0624-016 | CLAMP,HOSE-6708-5 (7/16-1) #8 | 1 | $2.99 | |
| 5 | 0673-422 | R/B 0678-122 | 1 | $20.59 | |
| 10 | 0624-021 | NUT,LOCK-HEX6MM 1.0T SS | 1 | $0.78 | |
| 11 | 0624-069 | RIVET,SS/SS56D | 1 | $0.35 | |
| 12 | 0673-372 | R/B 0678-122 | 1 | $7.49 | |
| 13 | 3008-235 | CLAMP,HOSE-EXPANDED,M14 | 1 | $6.29 | |
| 14 | 1673-101 | FITTING,ELBOW-3/8 BARB X 1/8 NPTM | 1 | $17.87 | |
| 15 | 0624-222 | WASHER,FLAT .625ID X .875OD X .031T (SS) | 1 | $0.75 | |
| 16 | 0624-117 | NUT,5/8-18 (BRASS) | 1 | $3.89 | |
| 17 | 0673-022 | FITTING,HULL (BULKHEAD) | 1 | $14.29 | |
| 18 | 0670-118 | OUTLET,OILTANK-1/2 TUBE | 1 | $4.95 | |
| 19 | 0610-162 | HOSE,FORMED-VENTURI TO BULKHEAD | 1 | $19.59 | |
| 20 | 0673-484 | FITTING,TEE-3/8 X 3/8 X 1/2-NYLON | 1 | $5.29 | |
| 21 | 0673-523 | FITTING,TEE-3/8 (NYLON) | 1 | $3.89 | |
| 22 | 0624-004 | WASHER,FLAT-M5 (SS) | 1 | $0.44 |
