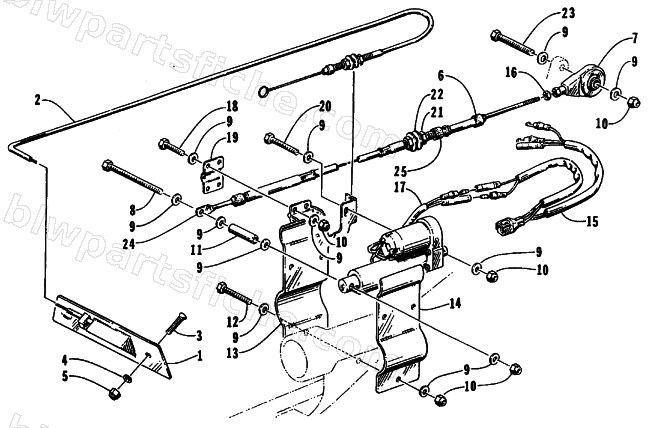

TRIM ASSEMBLY
1994 BARRACUDA
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0673-517 | PLATE,CONSOLE-TRIM | 1 | $46.95 | |
| 2 | 0673-518 | CABLE,TRIM INDICATOR(0673-772/466) | 1 | $102.95 | |
| 3 | 0624-201 | SCREW,MACH-PHOVH M5 X 20 (SS) DIN966A A2 | 1 | $0.75 | |
| 4 | 0624-004 | WASHER,FLAT-M5 (SS) | 1 | $0.44 | |
| 5 | 0624-005 | NUT,LOCK-M5-.8 (SS) | 1 | $1.19 | |
| 8 | 0624-213 | SCREW,CAP-HH M6-1.0 X 60 (SS) | 1 | $2.79 | |
| 9 | 0624-022 | WASHER,FLAT-6MM SS | 1 | $0.22 | |
| 10 | 0624-021 | NUT,LOCK-HEX6MM 1.0T SS | 1 | $0.78 | |
| 11 | 0673-487 | SPACER,TRIM CABLE | 1 | $8.29 | |
| 12 | 0624-052 | SCREW,CAP-HH-6MM-1.0TX35MM(SS) | 1 | $2.09 | |
| 14 | 0673-463 | BRACKET,TRIM MOTOR-LH | 1 | $8.79 | |
| 15 | 0686-245 | HARNESS,TRIM | 1 | $65.95 | |
| 16 | 0624-107 | NUT,HEX-10-32 (SS) | 1 | $0.39 | |
| 17 | 0673-711 | ACTUATOR,TRIM 1" W/NO LIMIT SWITCHS | 1 | $644.95 | |
| 18 | 0624-046 | SCREW,CAP-HH 6MM-1.0X16MM SS | 1 | $1.19 | |
| 21 | 0624-105 | NUT,JAM 7/16 (SS) | 1 | $1.19 | |
| 22 | 0624-106 | WASHER,FLAT 7/16 (SS) | 1 | $2.09 | |
| 24 | 0673-187 | CABLE,TRIM | 1 | $154.29 | |
| 25 | 0612-364 | COVER,THREAD CAP-STEERING CABLE | 1 | $2.69 |
