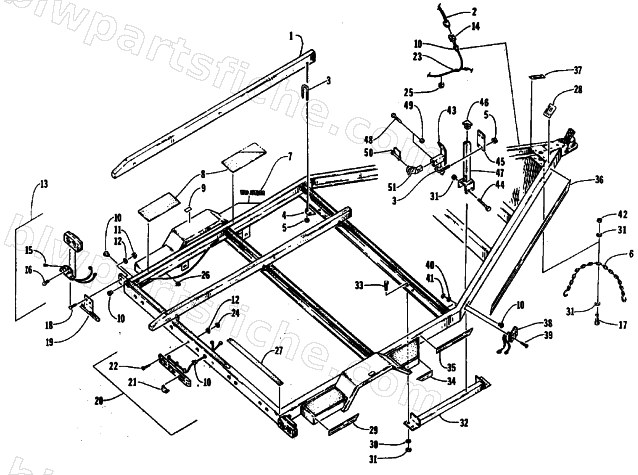

1993 Arctic Cat TRAILER — FRAME AND RELATED PARTS ASSEMBLIES
1993 TRAILER
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 5 | 8040-516 | NUT,HEX LOCK-NYL 3/8-24 Z&Y | 1 | $0.68 | |
| 11 | 0696-082 | SCOTCHLOC | 1 | $1.08 | |
| 14 | 8051-217 | WASHER,SPR LOCK-1/4 .252X.489X.077 Z&Y | 1 | $0.35 | |
| 16 | 8002-047 | SCREW,CAP-HH 1/4-20 X2.00 G5 Z&Y | 1 | $0.95 | |
| 17 | 0230-020 | BULB, T-10 WEDGE BASE-12 V 3.4W | 1 | $3.16 | |
| 18 | 0109-460 | BULB,STOP/TAILLAMP | 1 | $2.06 | |
| 20 | 0696-159 | BRACKET, LICENSE PLATE | 1 | $2.82 | |
| 21 | 0696-215 | BAR, THREE LIGHT ASSY | 1 | $31.79 | |
| 25 | 8011-042 | BOLT,CRG 1/4-20X1.0 GR1 Z&Y | 1 | $0.15 | |
| 27 | 8042-246 | NUT,10-24 HEX-REG-GR5 Z&Y | 1 | $0.15 | |
| 28 | 8002-234 | SCREW,CAP-HH 3/8-16 X4.00 G5 Z&Y | 1 | $1.50 | |
| 31 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 32 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 36 | 8002-220 | SCREW,CAP-HH 3/8-16 X.75 G5 Z&Y | 1 | $0.95 | |
| 37 | 8050-097 | WASHER,FLAT- #6 X .375 X .049 Z&Y | 1 | $0.15 | |
| 39 | 0696-152 | LIGHT, SIDE CLEARANCE | 1 | $17.95 | |
| 44 | 8002-225 | SCREW,CAP-HH 3/8-16 X1.50 G5 Z&Y | 1 | $0.95 | |
| 47 | 8042-486 | NUT,3/8-16 HEX-REG-GR5 Z&Y | 1 | $0.26 |
