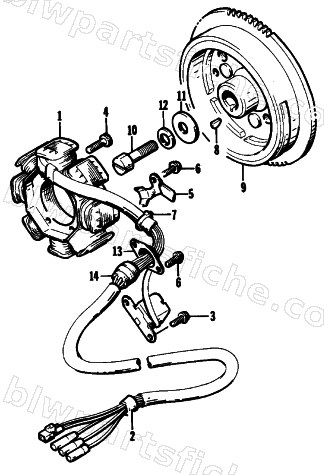

1993 Arctic Cat TIGERSHARK — MAGNETO
1993 TIGERSHARK
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3008-244 | STATOR | 1 | $646.95 | |
| 2 | 3008-111 | GROMMET, MAGNETO LEAD WIRE | 1 | $19.25 | |
| 3 | 3003-912 | SCREW,CLAMP-M5X12 | 1 | $1.69 | |
| 4 | 3008-166 | BOLT,MAGNETO STATOR-6X25 | 1 | $1.99 | |
| 5 | 3008-109 | HOLDER, MAGNETO LEAD WIRE | 1 | $22.01 | |
| 7 | 3003-787 | CABLE TIE | 1 | $4.95 | |
| 8 | 3004-540 | KEY,WOODRUFF,M4 | 1 | $6.34 | |
| 9 | 3008-602 | FLYWHEEL | 1 | $1,082.95 | |
| 10 | 3008-653 | BOLT | 1 | $74.95 | |
| 11 | 3008-017 | WASHER, 10.5X30X3.2 | 1 | $5.95 | |
| 12 | 3008-207 | WASHER, LOCK,10MM | 1 | $3.59 | |
| 13 | 3008-110 | HOLDER, GROMMET | 1 | $29.29 |
